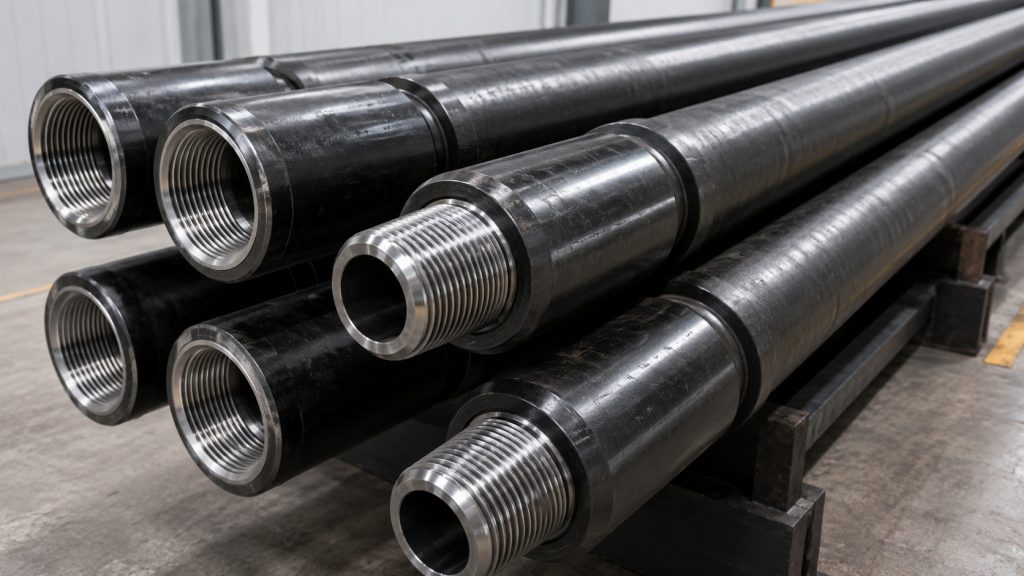

G105 Drill Pipe is an API 5DP drill string component used to carry rotary torque, drilling fluid and axial load between the rig and the bottom-hole assembly. In procurement, the grade name alone is not enough. A workable order normally needs OD, nominal weight, wall thickness, upset type, range, tool joint connection, inspection class and traceable documents.
Octal Drill Pipes supplies G105 drill pipe for drilling programs where buyers need higher strength than X95, but do not necessarily need S135 for the full string. Before quotation, we check the pipe body data, connection type, tool joint OD/ID, hardbanding, inspection scope and required documents, so the offer can match the actual rig and project requirement.
What Is G105 Drill Pipe Used For?
G105 drill pipe is used in rotary drilling strings to transmit torque to the bit, circulate drilling fluid and carry tensile load during drilling, tripping and connection make-up. It is normally considered when the string needs more load margin than X95, while S135 is not required by the drilling program. It is commonly used during rotary drilling, tripping, reaming and medium-to-deep well operations where the drill string must handle repeated torque, drag and tensile loading.
In field use, the rejection risk is often not caused by the pipe body grade itself. More common issues are connection mismatch, worn shoulders, poor thread protection, unsuitable hardbanding, insufficient remaining body wall or missing inspection records. For this reason, the purchase order should define both the pipe body and the tool joint details before stock release or production.
G105 Drill Pipe Specs Under API 5DP
API 5DP is the main technical basis for drill pipe supply, but a G105 order should not be checked by grade alone. Buyers should review pipe body data, upset type, tool joint, connection, inspection class and traceable documents together before release.
| Item | Technical Data | Procurement Check Point |
|---|---|---|
| Product | API drill pipe | Confirm pipe body, tool joint and connection scope before quotation |
| Grade | G105, minimum yield strength level 105,000 psi | Check whether G105 matches the drilling program load requirement |
| Standard | API Spec 5DP | Confirm API 5DP edition, inspection class and document requirement |
| Common OD Range | 2-3/8" to 6-5/8" | Final OD should match rig program, BHA design and existing drill string |
| Common Size Example | 5" OD × 19.50 lb/ft × 0.362" WT | Use as reference only; final size must follow the purchase order |
| Upset Type | IEU / EU | Confirm upset type before production or stock release |
| Range | R2 / R3 available by project requirement | Affects joint length, packing plan and drilling operation |
| Common Connections | NC38, NC46, NC50, 4-1/2 IF, 5-1/2 FH or project-required connection | Connection mismatch is one of the main causes of rig-site rejection |
| Tool Joint | Tool joint OD, ID, connection and shoulder condition | Confirm dimensions, thread data and make-up torque requirement |
| Inspection | Visual inspection, dimensional inspection, MPI, UT and project-required tests | Inspection scope should be agreed in the ITP before shipment |
| Documents | MTC, NDT report, thread gauge record, pipe list and packing list | Documents should be traceable by heat number and pipe serial number |
G105 Drill Pipe Size and Dimensions
For G105 drill pipe size and dimensions, nominal OD is only the first check. Buyers should also confirm nominal weight, actual wall thickness, upset type, range, connection, tool joint OD/ID and hardbanding position, especially for replacement or mixed-string orders.
The following table lists common purchasing examples. Final dimensions should be confirmed according to API 5DP, tool joint design and project requirement before quotation or stock release.
Common G105 Drill Pipe Size and Dimensions
| Nominal OD | Technical Data | Procurement Check Point |
|---|---|---|
| 3-1/2" | Commonly matched with NC38 connection, R2 / R3 range | Suitable for medium drilling string and replacement orders |
| 4" | Commonly matched with NC40 / NC46 connection, R2 / R3 range | Confirm connection compatibility with the existing drill string |
| 4-1/2" | Commonly matched with NC46 connection, R2 / R3 range | Check OD, weight, wall thickness and tool joint data before quotation |
| 5" | 19.50 lb/ft and 0.362" wall thickness are common market examples | NC50 is common, but tool joint OD/ID must still be confirmed |
| 5-1/2" | Project-based weight, wall thickness and connection design | Used for heavier drilling programs with higher load requirement |
G105 Drill Pipe Material Grade and Performance Position
G105 is a high-strength API 5DP drill pipe grade with a minimum yield strength level of 105,000 psi. It sits between X95 and S135 in common drill pipe grade selection, giving buyers a practical balance between tensile capacity, torsional reserve, availability and cost.
The grade decision should be connected to well depth, expected torque, tensile load, dogleg severity, drilling environment and inspection class. For many medium-to-deep well programs, G105 is selected when X95 has limited load margin, but the full cost and stiffness of S135 are not required.
If the drilling program requires a higher yield strength level, higher torque reserve or more severe fatigue control than G105 can provide, buyers can review our S135 Drill Pipe specification for high-load drilling strings.
| Grade | Minimum Yield Strength Level | Typical Buyer Concern |
|---|---|---|
| E75 | 75,000 psi level | Used when cost control and light-duty drilling are the main concerns |
| X95 | 95,000 psi level | Used for general drilling with moderate load requirement |
| G105 | 105,000 psi level | Balanced option for strength, field availability and cost control |
| S135 | 135,000 psi level | Used for deeper, high-load or more demanding drilling programs |
Tool Joint, NC Connection and Make-Up Torque Control
For G105 drill pipe, the connection is usually the first field-fit check after grade and size. The buyer should confirm NC or IF connection type, tool joint OD, tool joint ID, shoulder condition, thread protection and recommended make-up torque before shipment.
A common example is 5″ G105 drill pipe with NC50 connection, but NC50 alone is not a complete specification. Tool joint dimensions, inspection class, hardbanding and thread gauge records should be checked together. If these items are not aligned, the pipe may pass material inspection but still be rejected during rig-site matching.

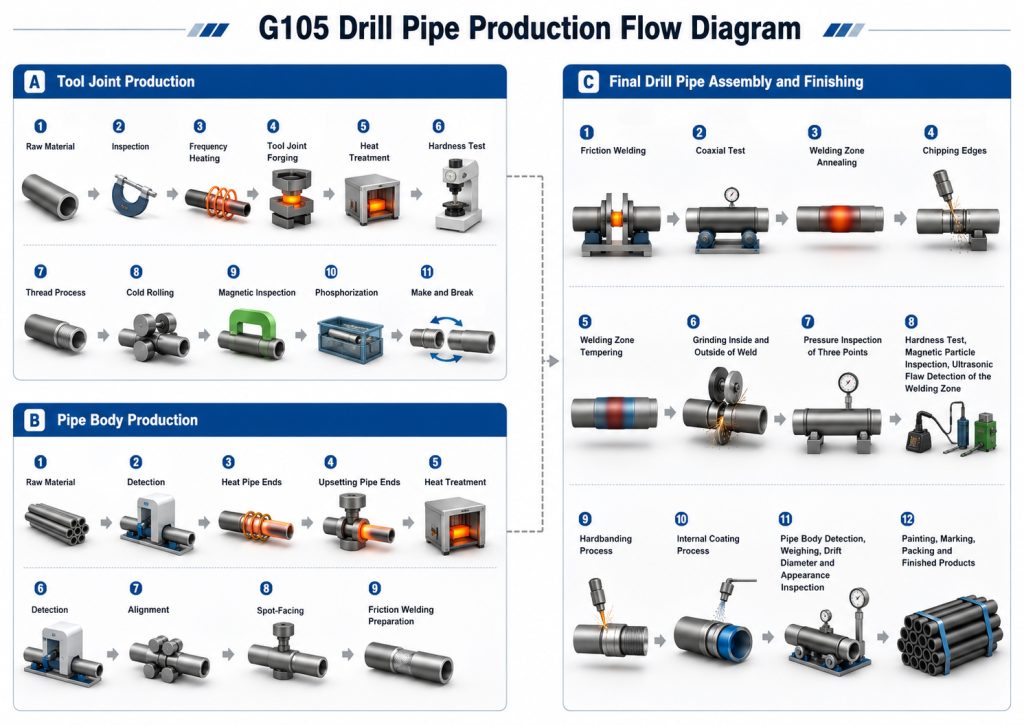

Production Process for G105 Drill Pipe
G105 drill pipe production is not only pipe body rolling and threading. A complete API 5DP drill pipe order normally includes pipe body forming, pipe end upsetting, heat treatment, tool joint machining, friction welding, weld zone heat treatment, threading, hardbanding or internal coating when required, final inspection, marking and packing.
For buyers, the key point is to check whether each process can be traced back to the pipe number, heat number and inspection record. If the pipe body, tool joint and weld zone are not controlled together, the final drill pipe may meet the grade requirement but still fail during connection matching, make-up torque control or field inspection.

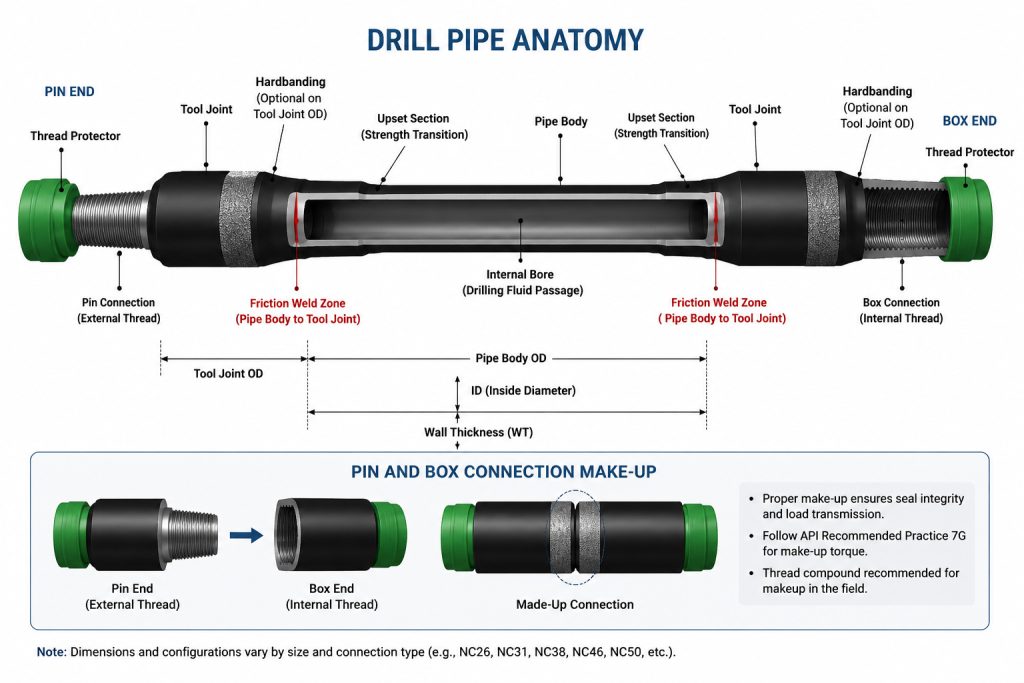

Pipe Body, Tool Joint and Weld Zone Control
For G105 drill pipe, the three areas that normally decide field acceptance are the pipe body, the tool joint and the weld zone. The pipe body carries axial load and drilling fluid pressure. The tool joint controls connection matching, make-up torque and shoulder sealing. The weld zone connects both parts and must remain stable after welding, heat treatment and repeated drilling cycles.
A buyer should not review these areas separately. If the pipe body grade is correct but the tool joint dimensions, weld alignment or thread gauge record is missing, the pipe can still be rejected before running. Octal Drill Pipes checks these control points before shipment release, especially for replacement orders, mixed-string supply and third-party inspection projects.
| Control Area | What to Check | Release Evidence |
|---|---|---|
| Pipe Body | OD, wall thickness, straightness, surface condition and remaining body wall | MTC, dimensional record, NDT record and pipe serial marking |
| Upset Transition | Upset type, transition geometry and stress concentration area | Dimensional inspection and visual inspection record |
| Tool Joint | Tool joint OD/ID, connection type, shoulder condition and thread protection | Thread gauge record, connection data and final inspection report |
| Weld Zone | Friction weld alignment, weld zone heat treatment and surface condition | Weld inspection record, MPI / UT record and heat treatment record when required |
| Final Traceability | Pipe number, heat number, connection, grade and range | Packing list, inspection release note and shipment document package |

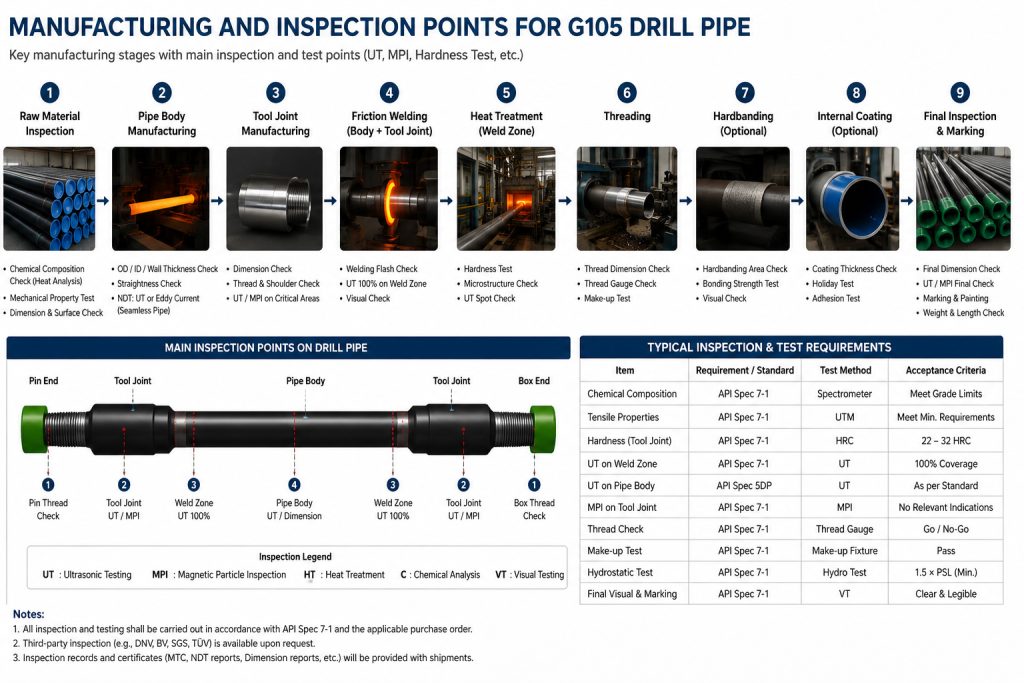

Manufacturing and Inspection Points for G105 Drill Pipe
For G105 drill pipe, inspection should cover the pipe body, upset transition, tool joint weld, thread, hardbanding and final marking. For project supply, the ITP should define inspection scope, hold points and document records before production or stock release, especially when third-party inspection is required.
| Control Point | Technical Data | Procurement Check Point |
|---|---|---|
| Pipe Body | OD, wall thickness, straightness, surface condition and remaining body wall | Check dimensional records and body condition before acceptance |
| Upset Area | IEU / EU type, transition area and dimensional conformity | Confirm upset type and transition condition according to order |
| Tool Joint Welding | Weld integrity, alignment, heat treatment record and inspection release | Important for connection strength and long-term fatigue performance |
| Threading | Connection type, thread gauge record, shoulder condition and thread protection | Gauge record should match the ordered connection type |
| NDT | UT / MPI according to API 5DP, project ITP or buyer requirement | Confirm inspection coverage before production or stock release |
| Hardbanding | Hardbanding type, position, width, thickness and casing wear compatibility | Check compatibility with casing wear control requirement |
| Hydrostatic Test | Test pressure and holding time according to API 5DP, order requirement or project ITP | Confirm whether hydrostatic test record is required in the final document package |
| Traceability | Heat number, pipe number, MTC, NDT record, inspection report and packing list | Documents should be matched before shipment release |
Optional Hardbanding and Internal Coating
G105 drill pipe can be supplied with optional hardbanding or internal coating when the drilling program requires additional wear control, corrosion protection or hydraulic performance support. These options should be confirmed before quotation because they affect tool joint dimensions, inspection scope, lead time and final document records.
Hardbanding is usually considered when the drill string will run under repeated rotation, high side force or long lateral sections where tool joint wear and casing wear are concerns. Internal coating is normally considered when corrosion, wax deposition, friction loss or drilling fluid cleanliness may affect service life or pumping efficiency.、
| Optional Item | When to Consider | Buyer Should Confirm |
|---|---|---|
| Hardbanding | High rotation, long lateral section, tool joint wear or casing wear control | Hardbanding type, location, width, thickness and casing-wear compatibility |
| Internal Coating | Corrosive drilling fluid, wax deposition, friction loss or internal cleanliness requirement | Coating type, service condition, inspection method, holiday test and coating report |
| Thread Protection | Export shipment, long storage or rig-site handling before running | Protector type, thread compound, packing method and storage requirement |
| Additional Inspection | NOC, EPC, contractor-led project or third-party witnessed supply | ITP, hold points, MPI / UT scope, coating inspection and final release documents |
Application Scenarios for G105 Drill Pipe

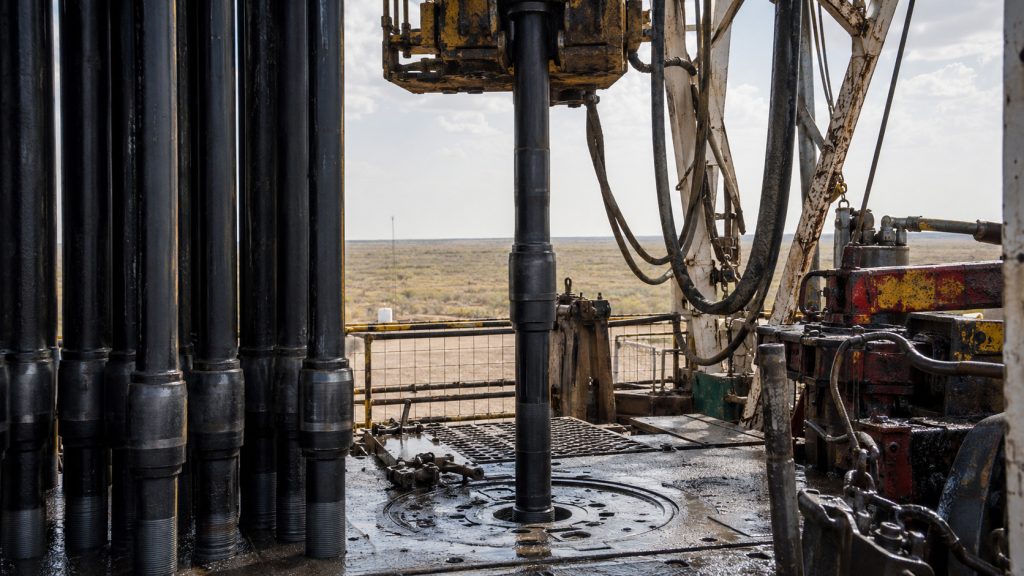

Conventional Rotary Drilling
In conventional rotary drilling, G105 drill pipe works under repeated rotation, mud circulation and make-up/break-out cycles. Field rejection usually comes from thread damage, shoulder wear, tool joint wear or pipe body fatigue, not only from pipe grade selection. Thread protection, gauge inspection and pipe-by-pipe marking help reduce these risks before the string goes to the rig floor.
Medium-to-Deep Well Drilling
In medium-to-deep well drilling, torque, drag and tensile load increase as the well profile becomes longer or more complex. G105 is often selected where X95 has limited load margin, while S135 is not required for the full drilling string. Buyers should confirm grade selection together with connection, range and inspection class.
Replacement and Mixed String Supply
Replacement orders are sensitive because the new joints must match the existing drill string. Before quoting 5″ G105 NC50 drill pipe, the supplier should check current connection data, tool joint OD/ID, range, hardbanding and remaining body wall requirement. This helps avoid fit-up problems after arrival.
Project Orders with Third-Party Inspection
For NOC, EPC or contractor-led drilling projects, G105 drill pipe may require witness inspection by SGS, BV, ABS or the end user’s inspector. The order should define hold points, inspection class, MTC format, NDT records, thread gauge records, marking and packing-list traceability before shipment release.
G105 Drill Pipe for Sale from Octal Drill Pipes
When buyers look for G105 drill pipe for sale, price per joint is only part of the quotation. A workable RFQ should confirm pipe size, nominal weight, grade, range, connection, upset type, tool joint OD/ID, hardbanding, quantity, inspection scope, document package and destination before stock checking or production planning.
Octal Drill Pipes can support common G105 drill pipe configurations and project-based supply. To prepare an accurate offer, please confirm the following RFQ information before quotation.
| RFQ Information | Example Data | Why It Matters |
|---|---|---|
| Pipe Size | 5" OD | Basic size data for quotation, stock checking and production planning |
| Nominal Weight | 19.50 lb/ft | Affects wall thickness, pipe weight and string design |
| Grade | G105 | Should match drilling load and project specification |
| Range | R2 / R3 | Affects joint length, packing plan and delivery calculation |
| Connection | NC50 / NC46 / 4-1/2 IF or project-required connection | Connection mismatch can cause rig-site fit-up failure |
| Upset Type | IEU / EU | Should be confirmed before production or stock release |
| Tool Joint | Tool joint OD × ID requirement | Important for connection compatibility and hydraulic performance |
| Quantity | Joints / meters / feet | Needed for quotation, production plan and shipping estimate |
| Inspection Requirement | API 5DP inspection, third-party inspection or project ITP | Inspection scope affects lead time, cost and document preparation |
| Destination | Port / jobsite / inland delivery point | Needed for packing plan, freight estimate and delivery schedule |
| Documents | MTC, inspection report, thread gauge record, packing list and COO if required | Required for project approval, customs clearance and final acceptance |
Why Choose Octal Drill Pipes for G105 Drill Pipe Supply
Specification Check Before Quotation
We check OD, nominal weight, wall thickness, range, connection, tool joint size, hardbanding and inspection scope before quotation. This helps avoid wrong connection, missing inspection items and document mismatch after order confirmation.
Document Package for Project Review
For project orders, Octal Drill Pipes can prepare MTC, NDT records, thread gauge records, inspection reports, packing list and heat/pipe traceability according to the agreed scope. The document file can be arranged for buyer review before shipment release.
Support for Stock and Project Orders
We support common drill pipe grades including E75, X95, G105 and S135, with R2/R3 range, NC or IF connections, hardbanding and third-party inspection when required by the project.

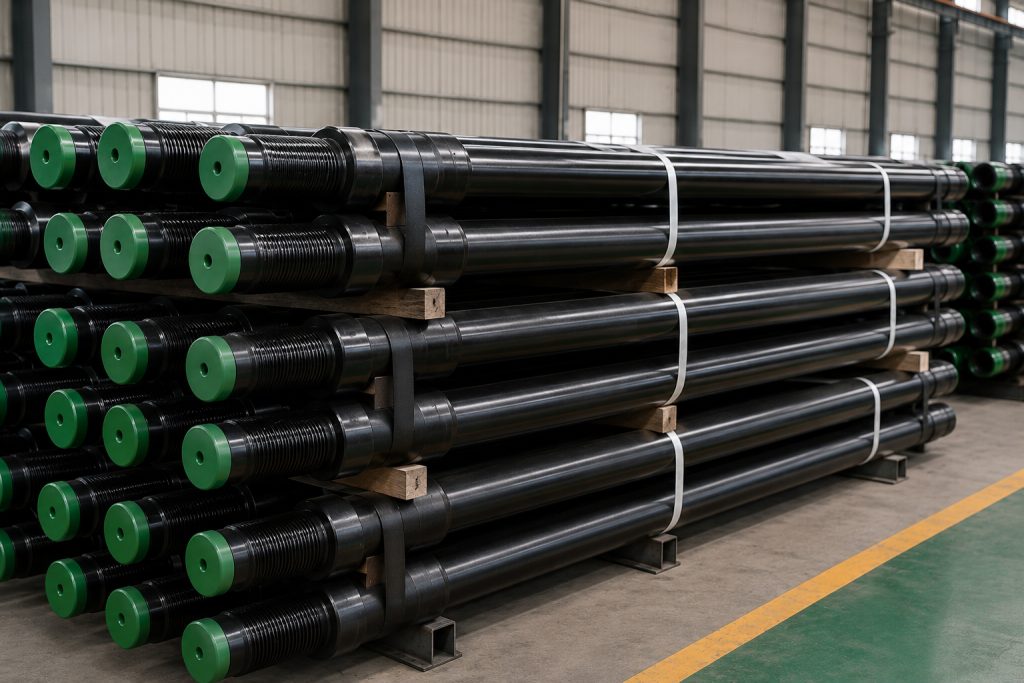

Export Packing and Shipment Control
Thread protectors, bundle packing, marking and packing-list traceability are checked before loading. This helps the buyer verify cargo by size, grade, connection and pipe number after arrival.
FAQ
Q1: What is G105 drill pipe used for?
A1: G105 drill pipe is used in rotary drilling strings to transmit torque, drilling fluid and axial load. It is commonly selected for medium-to-deep drilling programs where X95 may have limited load margin and S135 is not required.
Q2: What standard applies to G105 drill pipe?
A2: G105 drill pipe is normally supplied according to API Spec 5DP. The purchase order should also define size, weight, range, upset type, connection, tool joint dimensions, inspection class, and document requirements.
Q3: What are common G105 drill pipe sizes?
A3: Common sizes include 3-1/2″, 4″, 4-1/2″, 5″, and 5-1/2″, depending on the drilling program. A common market example is 5″ OD, 19.50 lb/ft, G105, IEU, R2 with NC50 connection.
Q4: What should be checked before buying G105 drill pipe?
A4: Buyers should confirm OD, wall thickness, weight, range, connection, tool joint OD/ID, hardbanding, remaining body wall, inspection records, MTC, and packing-list traceability before shipment.
