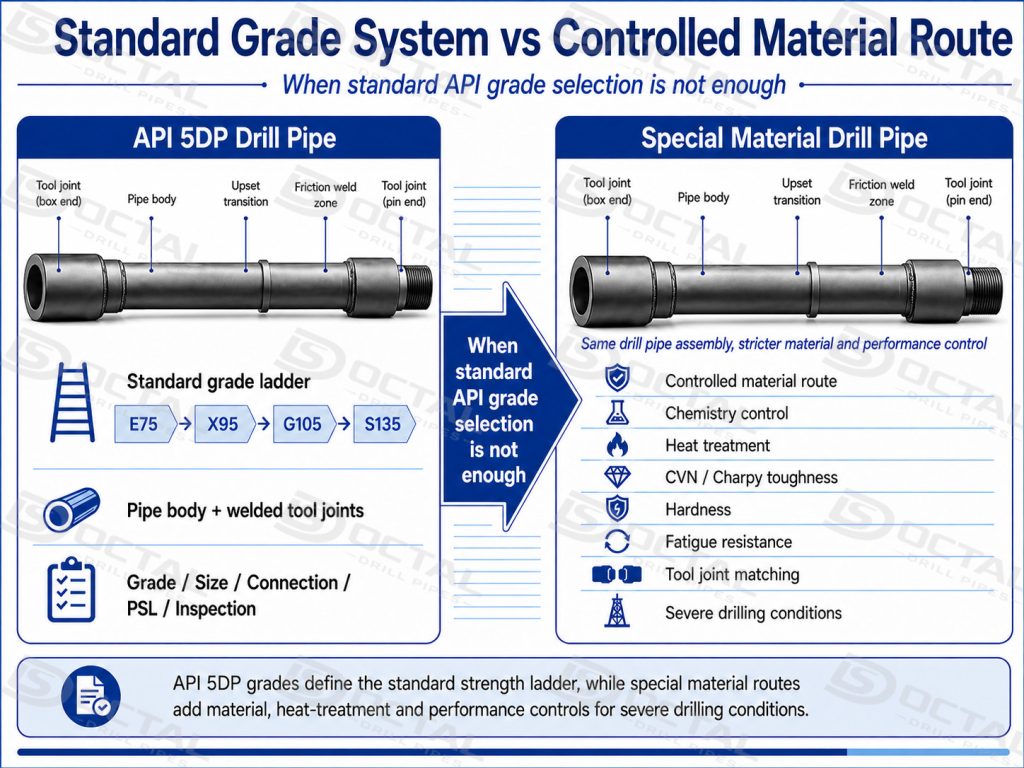

Special Material Drill Pipe vs API 5DP Drill Pipe should be understood from drill-string service conditions, not only from grade names. During drilling, the pipe body and tool joint work under combined tensile load, rotary torque, cyclic bending, internal pressure, impact loading and connection make-up stress. API 5DP Drill Pipe provides the standard grade system for steel drill pipe with upset pipe-body ends and welded-on tool joints, including common grades such as E75, X95, G105 and S135, with minimum yield strength levels of 75 ksi, 95 ksi, 105 ksi and 135 ksi respectively.
Special Material Drill Pipe is not a universal API grade name. It refers to a controlled material route used when standard API grade selection cannot fully cover the actual service risk, such as high hook load in deep wells, repeated bending in long horizontal sections, sour-service cracking sensitivity, low-temperature impact risk, or high-torque connection demand. The review therefore moves beyond yield strength alone and connects chemistry control, heat treatment, Charpy impact toughness, hardness, fatigue-sensitive upset transition areas, tool joint matching and inspection records into one performance evaluation. In simple terms, API 5DP Drill Pipe defines the standard baseline; Special Material Drill Pipe is reviewed when the drilling condition requires additional verified performance beyond that baseline.
API 5DP Drill Pipe: The Standard Baseline
API 5DP Drill Pipe works as the standard baseline before discussing any special material route. It defines drill pipe as a complete assembly, not only a pipe body: the pipe body has upset ends, the tool joints are welded on, and the final product is reviewed by grade, dimension, connection, PSL level, marking and inspection records.
The common API 5DP drill pipe grades include E75, X95, G105 and S135. The grade number corresponds to the minimum yield strength in ksi, so E75 starts at 75 ksi, X95 at 95 ksi, G105 at 105 ksi, and S135 at 135 ksi. This grade ladder gives engineers a standard way to match drill pipe strength with drilling load, well depth, connection requirement and inspection level.
| API 5DP Control Item | What It Means in Drill Pipe Review |
|---|---|
| Grade | Defines the basic strength level, such as E75, X95, G105 or S135 |
| Pipe body | Controls OD, wall thickness, upset type and mechanical properties |
| Tool joint | Controls connection type, shoulder area, thread condition and torque transfer |
| PSL level | Adds different levels of technical and inspection requirements |
| Mechanical testing | Verifies yield strength, tensile strength and elongation |
| Marking and traceability | Links pipe identity with heat number, MTC and inspection records |
Special Material Drill Pipe starts from this same baseline but adds another layer of material and performance review. When drilling conditions involve higher tensile load, repeated bending, severe dogleg, low-temperature exposure, sour-service risk or high-torque operation, the review moves beyond grade name and basic dimensions. Chemistry control, heat treatment, hardness, Charpy impact toughness, fatigue-sensitive transition areas and tool joint matching become part of the technical evaluation.
API 5DP Drill Pipe Grades and Mechanical Strength
API 5DP drill pipe grades are mainly separated by yield-strength level. This strength ladder gives a clear baseline before comparing standard API drill pipe with any special material route. E75, X95, G105 and S135 do not only represent different grade names; they define different yield-strength windows that affect tensile capacity, drilling load margin and the first level of drill string selection.
| API 5DP Grade | Minimum Yield Strength | Maximum Yield Strength | Minimum Tensile Strength | Grade Meaning |
|---|---|---|---|---|
| E75 | 75 ksi / 517 MPa | 105 ksi / 724 MPa | 100 ksi / 689 MPa | Lower-strength API drill pipe grade for moderate drilling loads |
| X95 | 95 ksi / 655 MPa | 125 ksi / 862 MPa | 105 ksi / 724 MPa | Intermediate strength grade for deeper or higher-load sections |
| G105 | 105 ksi / 724 MPa | 135 ksi / 931 MPa | 115 ksi / 793 MPa | Higher-strength grade with increased tensile load capacity |
| S135 | 135 ksi / 931 MPa | 165 ksi / 1138 MPa | 145 ksi / 1000 MPa | Common high-strength API drill pipe grade for demanding drilling loads |
From E75 to S135, the main increase is the yield-strength window, which helps the drill pipe carry higher tensile load under deeper or more demanding drilling conditions. However, drill pipe works under combined tension, torque, bending and internal pressure, so higher yield strength does not automatically solve fatigue cracking, brittle fracture, sour-service cracking or connection-side stress.
What Special Material Drill Pipe Means
Special Material Drill Pipe is not a single universal API grade name. It is a performance-based drill pipe category used when standard API grade selection cannot fully cover the required strength, toughness, fatigue resistance, sour-service control or low-temperature impact performance. The review is not limited to the pipe body grade; it also includes the upset transition, tool joint, heat-treatment condition, hardness control and traceability records as one complete drill pipe performance system.
A standard API grade is mainly identified by its strength level, such as E75, X95, G105 and S135, with minimum yield strength from 75 ksi to 135 ksi. Special Material Drill Pipe starts from the same drill pipe structure, but the technical review moves further into Charpy impact toughness, hardness limits, fatigue-sensitive transition areas, sour-service suitability, low-temperature performance and tool joint matching.
| Technical Review Item | What It Means for Special Material Drill Pipe | Why It Matters |
|---|---|---|
| Strength and toughness | Yield strength, tensile strength, elongation and Charpy impact energy are reviewed together, not as separate numbers. | Higher strength only has value when the pipe still keeps enough toughness for bending, impact and low-temperature service. |
| Material and heat treatment | Chemistry control, quenching, tempering, hardness and microstructure are checked against the required performance route. | Poor heat-treatment control can create unstable strength, excessive hardness or reduced crack resistance. |
| Fatigue and connection areas | Upset transition, pipe body-to-tool joint area, thread condition and shoulder contact are reviewed as fatigue-sensitive zones. | Repeated rotation, dogleg bending and high torque often concentrate stress near transitions and connections. |
| Test records and traceability | MTC, heat number, tensile test, impact test, hardness record, NDT and tool joint inspection are linked to pipe marking. | Special material performance must be proven by records, not only by a grade name or product description. |
Special Material Drill Pipe should be verified by test data that matches the intended service condition. Yield strength, tensile strength, Charpy impact values, hardness records, heat number traceability and tool joint / thread inspection should be reviewed together. This evidence chain confirms whether the material route supports real drill pipe performance under the required torque, fatigue, temperature or sour-service condition.
Chemical Composition and Material-Control Difference
The chemical-composition difference between API 5DP Drill Pipe and Special Material Drill Pipe is mainly the depth of material control. API 5DP drill pipe chemistry is reviewed to support standard grade compliance, mechanical properties and heat-treatment response. The focus is whether the pipe meets the specified API grade, such as E75, X95, G105 or S135.
For Special Material Drill Pipe, chemistry is reviewed as part of a stricter performance route. Alloy design, hardenability, heat treatment, hardness, Charpy impact toughness and cracking sensitivity are checked together because the pipe may work under higher strength, sour service, low temperature or fatigue-sensitive drilling conditions. The key difference is not the presence of alloy elements alone, but how those elements support strength, toughness and service reliability after heat treatment.
| Material-Control Item | API 5DP Drill Pipe | Special Material Drill Pipe |
|---|---|---|
| Grade basis | Standard API grade system such as E75, X95, G105, S135 | Special material route based on strength, toughness, sour-service or fatigue requirement |
| Chemistry review | Heat analysis and product analysis support API grade compliance | Chemistry is reviewed together with alloy design, hardenability, toughness and cracking sensitivity |
| Carbon control | Supports strength and heat-treatment response | More sensitive where high strength and impact toughness must be balanced |
| Mn, Cr, Mo, Ni, V, Nb, Ti | Used according to material design and manufacturing route | May be adjusted to improve strength, hardenability, grain refinement or toughness |
| P and S control | Restricted because high residual elements can reduce toughness | More critical for low-temperature toughness, sour-service or fatigue-sensitive use |
| Heat treatment | Applied to meet grade mechanical requirements | Usually a core part of the special material performance route |
| Verification | MTC, heat number, tensile test, impact test where required | MTC plus grade datasheet, heat-treatment record, Charpy test, hardness and traceability review |
This material-control difference is important because drill pipe performance is not determined by chemistry alone. A standard API grade can be accepted when its chemical analysis, mechanical properties and inspection records meet the specified API 5DP requirement. A special material route needs stronger evidence: the chemistry, heat treatment, hardness, impact toughness and traceability records must support the same performance target.
Mechanical Strength Is Not the Only Difference
Mechanical strength is only the first layer of drill pipe comparison. For Special Material Drill Pipe vs API 5DP Drill Pipe, the more important difference is how strength, toughness, hardness, fatigue resistance and tool joint performance are controlled together under severe drilling conditions.
| Review Area | Standard API Drill Pipe | Special Material Drill Pipe |
|---|---|---|
| Strength level | Defined by API 5DP drill pipe grades | May exceed common standard grade use or tighten the strength window |
| Toughness | Controlled by grade, PSL and project requirement | Often reviewed more strictly, especially at low temperature or high strength |
| Hardness | Controlled according to grade and service requirement | More sensitive in sour service, high-strength and cracking-risk conditions |
| Fatigue behavior | Reviewed through standard design and inspection | More focus on upset transition, cyclic bending and stress concentration |
| Tool joint matching | Standard tool joint inspection and connection review | Tool joint strength, hardness and shoulder/thread performance must match pipe body demand |
| Documentation | Standard MTC and inspection records | Additional datasheet, impact test, hardness and traceability review may be needed |
Standard API drill pipe is mainly reviewed through API 5DP grade strength, PSL level, dimensions, tool joint condition and traceability records. Special Material Drill Pipe adds stricter review of toughness, hardness, heat-treatment consistency, fatigue-sensitive transition areas and tool joint matching, especially in long horizontal wells, severe dogleg sections, sour-service environments, low-temperature drilling and high-torque operations.
Impact Toughness and Low-Temperature Performance
Impact toughness shows how drill pipe steel resists brittle fracture under sudden impact, crack initiation or low-temperature service. As strength increases, this review becomes more important because high yield strength alone does not prove safe field performance.
For API 5DP Drill Pipe, toughness is reviewed by grade, PSL level and project requirement. For Special Material Drill Pipe, toughness, hardness and heat-treatment stability need closer control, especially in low-temperature drilling, sour-service conditions and fatigue-sensitive wells.
A professional toughness review should include:
- Charpy impact test temperature
- Average impact energy
- Single specimen minimum value
- Pipe body test location
- Weld zone or upset area when applicable
- Tool joint impact or hardness requirement where specified
- Relationship between strength level and toughness result
| Condition | Why Toughness Matters |
|---|---|
| Low-temperature drilling area | Steel toughness can decrease as temperature drops; Charpy test temperature becomes important |
| High-strength drill pipe | Higher strength can reduce toughness margin if heat treatment is not controlled |
| Long horizontal drilling | Repeated bending and rotation can accelerate fatigue crack growth |
| Severe dogleg section | Local bending stress increases fatigue risk near transition areas |
| Sour-service environment | Hardness and microstructure must be controlled to reduce sulfide stress cracking risk |
| Ultra-deep drilling | High tension, torque and cyclic load require strength and toughness to be reviewed together |
Hardness, Sour Service and Cracking Sensitivity
Hardness control is another important difference between ordinary grade selection and special material review. For standard API drill pipe, hardness is checked according to grade, service condition and applicable specification. For sour service or high-strength special material use, hardness becomes a more sensitive item because high hardness can increase cracking susceptibility.
| Review Item | Technical Meaning |
|---|---|
| Surface hardness | Helps identify excessive hardening risk |
| Through-wall hardness | Useful where heat-treatment uniformity matters |
| Tool joint hardness | Important for connection performance and service condition |
| Sour-service hardness control | Helps reduce sulfide stress cracking risk |
| Heat-treatment consistency | Supports stable strength and toughness along the pipe body |
| MTC + hardness record | Connects measured result to heat number and product identity |
For sour gas wells or H₂S exposure, Special Material Drill Pipe should be evaluated through sour-service rules, hardness control and cracking-resistance logic. A high-strength drill pipe without sour-service qualification should not be used in sour service simply because its yield strength is high.

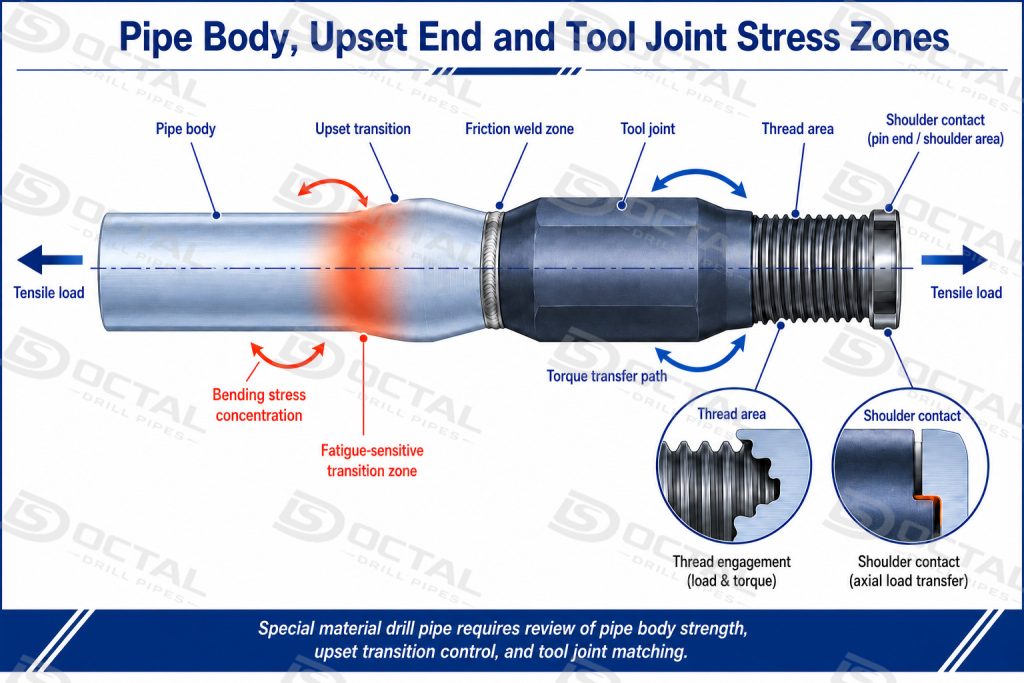

Pipe Body, Upset End and Tool Joint Difference
API 5DP Drill Pipe and Special Material Drill Pipe should both be reviewed as complete drill pipe assemblies. The pipe body carries tensile and bending load. The upset end and weld zone transfer stress. The tool joint handles connection strength, torque transmission, shoulder contact and thread performance.
The higher the pipe body strength, the more important the matching between pipe body and tool joint becomes.
| Drill Pipe Area | Main Function | Standard API Drill Pipe Review | Special Material Drill Pipe Review |
|---|---|---|---|
| Pipe body | Carries tension, bending and internal pressure | Grade, OD, wall thickness, tensile test, dimensional check | Strength window, toughness, fatigue behavior and heat-treatment consistency |
| Upset end | Transfers section change from pipe body to tool joint | Upset type, dimensional control and visual inspection | Transition geometry, local stress concentration and fatigue risk |
| Weld zone | Joins pipe body and tool joint | Weld-zone inspection and acceptance | Higher attention when strength level or service severity increases |
| Tool joint | Carries connection load and torque | Thread, shoulder, OD / ID, connection type | Strength, hardness, impact behavior and matching with pipe body |
| Thread / shoulder | Provides make-up and torque transfer | Gauging and surface condition | More critical in high-torque or long lateral drilling |
Special Material Drill Pipe is often selected because the failure risk is not limited to the pipe body. In high-torque or high-fatigue drilling, the thread, shoulder, upset transition and tool joint may become the controlling points.
Application Difference: When API 5DP Drill Pipe Is Suitable
API 5DP Drill Pipe is suitable when the drilling program can be controlled within a standard grade, connection and inspection framework. The main review is whether the selected API 5DP grade, such as E75, X95, G105 or S135, provides enough tensile margin, torsional capacity, connection compatibility and inspection acceptance for the planned well profile.
Standard API drill pipe is generally suitable for:
- Conventional vertical wells with moderate tensile load
The drill string mainly works under axial tension, rotary torque and normal tripping load. Dogleg severity and cyclic bending are limited, so standard API 5DP drill pipe grades can usually provide a clear strength range and inspection basis. - Medium-depth directional wells with controlled deviation
The well has directional sections, but the drilling interval does not create severe repeated bending or long-distance torque-and-drag accumulation. X95, G105 or S135 can be reviewed by tensile load, OD / wall thickness, connection type and normal fatigue margin. - Deep wells where S135 still has enough design margin
S135 provides a 135 ksi minimum yield-strength level and is commonly used as the high-strength API-grade baseline. It is suitable when calculated hook load, torque, connection demand and fatigue risk remain within verified limits. - Drilling programs using common API connections
When NC, FH, IF or other specified rotary shouldered connections are used within normal make-up, shoulder and thread inspection requirements, API 5DP review can cover pipe body grade, tool joint condition and traceability records. - Wells without severe sour, low-temperature or fatigue demand
If H₂S exposure, low-temperature impact requirement, severe dogleg, long horizontal rotation and ultra-high tensile load are not controlling factors, standard API drill pipe is usually the cleaner technical choice.
API 5DP Drill Pipe becomes less suitable when the well profile moves beyond normal grade review. Severe cyclic bending, long horizontal rotation, insufficient S135 design margin, high torque, sour-service exposure or low-temperature impact requirements can shift the limiting factor from basic yield strength to toughness, hardness, fatigue resistance or tool joint performance.
Application Difference: When Special Material Drill Pipe Is Needed
Special Material Drill Pipe is used when the drilling condition requires a controlled material route beyond standard API grade selection. The decision should be based on the actual load path of the drill string, not on the product name. In severe wells, the critical issue is often not only pipe body yield strength, but also bending fatigue, impact toughness, hardness control, upset-transition stress and tool joint matching.
Special material drill pipe grades are more appropriate for:
- Ultra-deep wells with high hook load and tensile demand
When the drill string load approaches the upper range of standard API-grade drill pipe, a higher-strength or tighter strength-window material route may be required. In this case, strength, toughness and tool joint matching should be reviewed together. - Long horizontal wells with extended rotating intervals
Long lateral sections increase torque, drag and cyclic bending. Fatigue damage can accumulate around upset transitions, tool joints and connection areas, so fatigue resistance and connection-side performance become more important. - Extended-reach drilling with combined tension, torque and drag
ERD wells place the drill string under combined axial load, torque, drag and bending over a long measured depth. Material strength alone is not enough; toughness, fatigue behavior and tool joint performance need to work as one system. - Severe dogleg or high build-rate sections
Local bending stress can concentrate near the pipe body-to-upset transition and tool joint area. Special Material Drill Pipe is reviewed where fatigue-sensitive geometry, heat-treatment consistency and impact toughness become key control points. - Low-temperature drilling conditions
Steel toughness can decrease at lower temperatures, increasing brittle fracture risk under impact or crack initiation. Charpy impact toughness at the required test temperature should be checked together with strength and heat-treatment results. - Sour-service or H₂S exposure
High hardness and unsuitable microstructure can increase sulfide stress cracking risk. Special material review should include hardness control, sour-service suitability and cracking-resistance logic, not only yield strength. - High-torque drilling sections
In high-torque operation, the connection shoulder, thread condition and tool joint strength may become limiting factors. Pipe body strength, tool joint matching, thread inspection and shoulder performance should be reviewed together.
Special Material Drill Pipe is not a universal upgrade for every drilling program. It is technically justified when the well condition creates a clear requirement for higher strength, better toughness, stricter hardness control, improved fatigue resistance or more controlled tool joint performance. Where a standard API 5DP grade already provides enough margin, standard API drill pipe remains the more direct technical route.
FAQ
F1:Is Special Material Drill Pipe a standard API 5DP grade?
Q1:No. Special Material Drill Pipe is not a universal API 5DP grade name. API 5DP grades are normally identified by standard strength levels such as E75, X95, G105 and S135. Special material drill pipe refers to a controlled material route where strength, toughness, hardness, heat treatment, fatigue behavior and tool joint matching are reviewed beyond normal standard API drill pipe selection.
F2:When is API 5DP Drill Pipe enough for a drilling program?
Q2:API 5DP Drill Pipe is usually enough when the selected grade provides sufficient tensile margin, torque capacity, connection compatibility and inspection evidence for the well profile. For example, S135 may be suitable where the calculated hook load, dogleg severity, fatigue risk, temperature and service environment remain within verified API-grade limits.
F3:When should Special Material Drill Pipe be reviewed instead of standard API drill pipe?
Q3:Special Material Drill Pipe should be reviewed when the limiting factor is no longer only API grade strength. Long horizontal wells, ERD sections, severe dogleg intervals, low-temperature drilling, sour-service exposure and high-torque operation may require closer control of Charpy impact toughness, hardness, heat-treatment stability, upset-transition fatigue and tool joint performance.
F4:What records prove that Special Material Drill Pipe is different from standard API drill pipe?
Q4:The difference must be proven by records, not only by a product name. A complete technical file should connect pipe marking → heat number → MTC → mechanical test report → Charpy impact test → hardness record → NDT report → dimensional inspection → tool joint and thread inspection → final release record. Without this chain, the special material route has limited value for grade comparison or field-use evaluation.
