S135 drill pipe is a high-strength API 5DP drill-string member made from a heat-treated seamless alloy steel pipe body, upset pipe ends and friction-welded pin and box tool joints. It is used to transmit rotary torque, carry axial tensile load and provide a continuous internal passage for drilling fluid circulation between the rig system and the bottom-hole assembly. Its special value is the higher pipe-body strength level: S135 is designed with 135 ksi minimum yield strength, making it suitable for deeper wells, directional wells, extende
The finished S135 drill pipe is not only a strong pipe body. It is a complete welded drilling assembly. The pipe body, upset transition, weld zone, tool joint, rotary-shouldered connection, shoulder face and internal bore must work together as one mechanical and hydraulic path. For this shipment to Dammam, Saudi Arabia, the release review focused on the finished joint condition before export delivery: product marking, connection identity, thread protector installation, drift passage, inspection records, bundle marking and packing-list traceability.
Order Overview
| Item | Order Details |
| Destination | Dammam, Saudi Arabia |
| Product | S135 Drill Pipe |
| Standard | API 5DP / ISO 11961 |
| Grade | S135 |
| Pipe Body | Heat-treated seamless alloy steel pipe body |
| Tool Joint Type | Weld-on pin and box tool joints |
| Upset Type | As per approved purchase order |
| Connection | As per approved purchase order |
| Length Range | R2 or project-specified range |
| Main Function | Torque transmission, tensile load carrying and drilling fluid circulation |
| Release Focus | Grade identity, finished joint condition, connection protection and shipment traceability |
| Document Package | MTC, dimensional report, NDT report, thread inspection record, packing list and loading photos |
This order was reviewed as a finished drill pipe shipment, not as a loose steel pipe delivery. The receiving team should be able to identify each joint by grade, size, connection, heat/lot reference and bundle number after arrival.

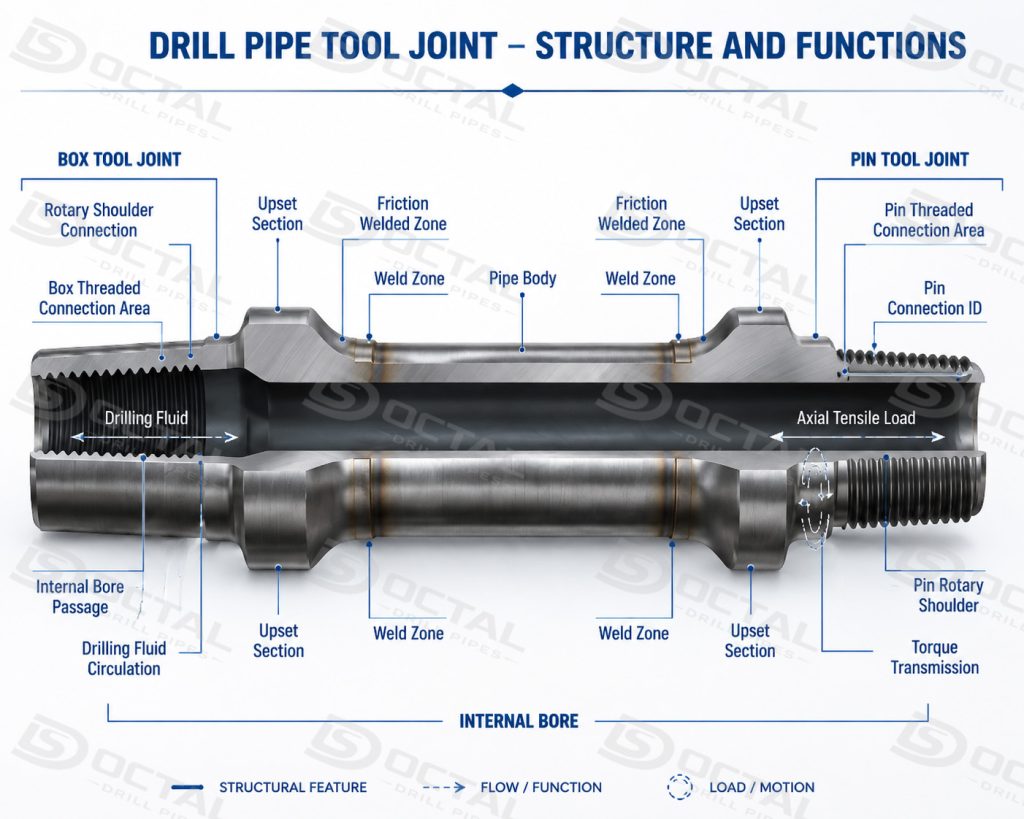

S135 Drill Pipe Construction and Finished-Joint Logic
S135 drill pipe is supplied as a finished drilling-string joint, not as a plain seamless pipe. Each joint includes a heat-treated seamless alloy steel pipe body, upset pipe ends, friction-welded tool joints and rotary-shouldered threaded connections. These parts work together to transfer torque, carry tensile load and keep drilling fluid moving through the drill string.
The pipe body provides the main load-carrying section. The upset ends strengthen the transition area near the tool joints. The pin and box tool joints provide the make-and-break connection points used during rig operation. The shoulder faces and threads transfer torque from one joint to the next, while the internal bore keeps the drilling-fluid path open.
For this shipment, the finished-joint review focused on whether the complete drill pipe matched the approved order before packing. The inspection team checked product marking, tool-joint condition, thread condition, shoulder faces, protector fitting and visible surface condition. This helps confirm that the shipped S135 drill pipe is ready for receiving inspection and yard allocation after arrival.
| Finished-Joint Area | Main Function | Shipment Check Focus |
| Seamless Pipe Body | Carries tensile load and torsion through the drill string | Grade marking, OD, wall thickness, straightness and surface condition |
| Upset Ends | Strengthen the transition between pipe body and tool joints | Upset profile, transition smoothness and visible defect check |
| Weld Zones | Join the pipe body with pin and box tool joints | Weld alignment, flash removal, hardness review and required NDT records |
| Pin and Box Tool Joints | Provide connection ends for repeated make-up and break-out | Tool-joint OD/ID, bore condition, shoulder condition and surface protection |
| Rotary-Shouldered Threads | Transfer torque through threaded connections and shoulders | Connection identity, thread condition, shoulder cleanliness and protector fitting |
A practical review path is:
Pin thread → pin tool joint bore → upset transition → pipe body → opposite upset transition → box tool joint bore → box thread.
This path matters because the smallest local bore, not the nominal pipe-body ID alone, controls drift passage and internal tool clearance.

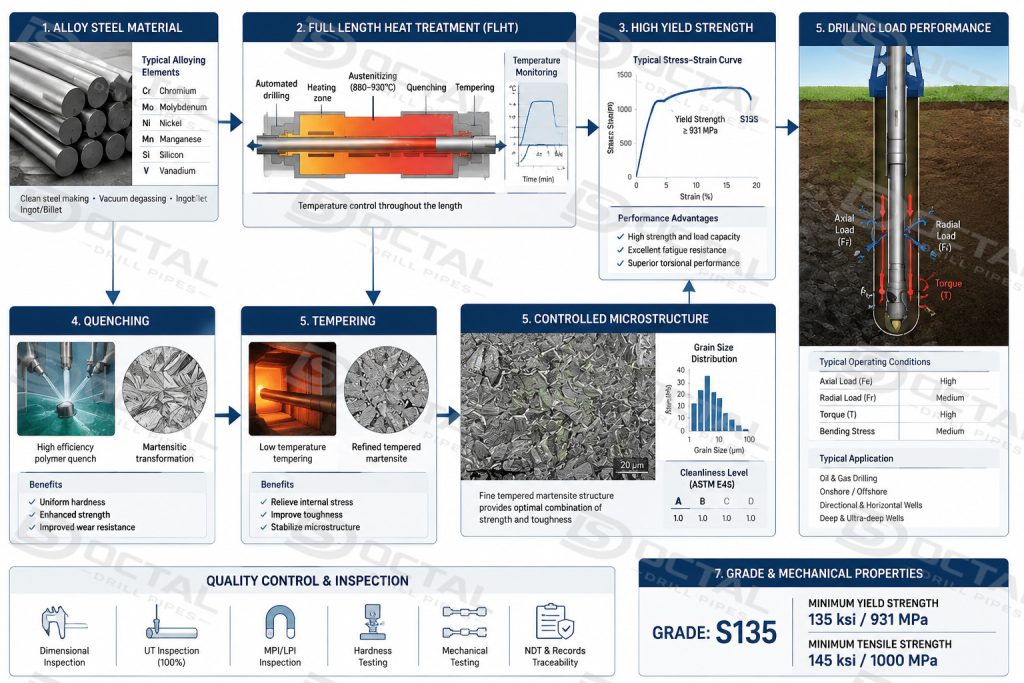

S135 Grade and Mechanical Property Review
S135 belongs to the high-strength API drill pipe grade range. It is commonly used when the drilling program requires a higher pipe-body yield level than G105, especially where tensile load, torque demand and fatigue exposure are more severe.
| Inspection Item | S135 Review Point | Practical Meaning |
| Minimum Yield Strength | 135 ksi / 931 MPa | Confirms the S135 pipe-body strength level |
| Maximum Yield Strength | 165 ksi / 1138 MPa | Helps control excessive hardness and reduced toughness risk |
| Minimum Tensile Strength | 145 ksi / 1000 MPa | Supports load-carrying capacity review |
| Elongation | Per API requirement | Confirms ductility for cyclic drilling load |
| Impact Requirement | As specified by standard or project condition | Supports toughness review for demanding wells |
| Heat Treatment | Full-length quench and temper after upsetting for Group 3 grades | Controls pipe-body strength and upset transition consistency |
| Tool Joint Properties | Per approved design and order requirement | Confirms connection-side strength and field compatibility |
The mechanical review should not stop at the certificate summary. The MTC values need to match the heat number, heat-treatment lot and pipe marking. If a pipe joint cannot be connected back to the correct material record and inspection record, it should be held for clarification before release.

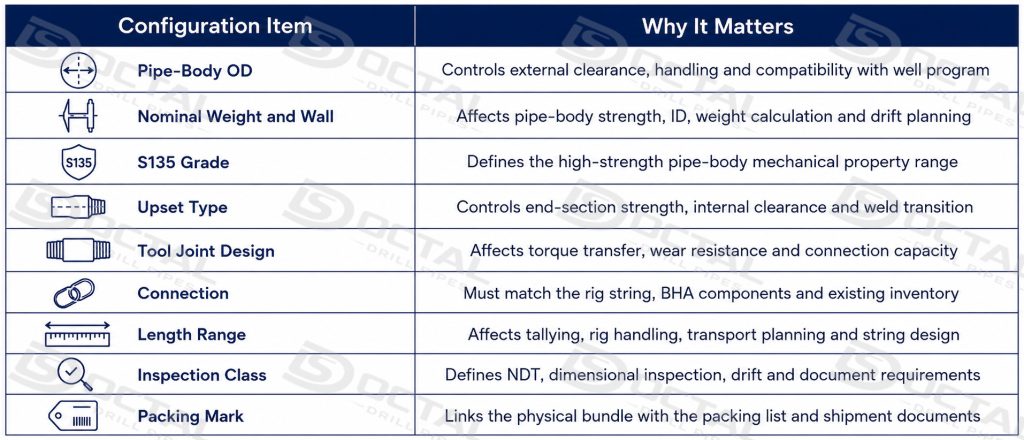

S135 Drill Pipe Configuration Review
A shipment article should make the product easy to understand. For S135 drill pipe, the order description should always be read as a complete configuration, not as one grade name.
S135 drill pipe configuration logic:
Pipe-body OD → nominal weight → wall thickness → S135 grade → upset type → welded tool joints → connection → length range → inspection records → packing list
Each part controls a different acceptance point.
For this Dammam shipment, the most important practical control was to make the finished joints easy to identify and verify after arrival. Clear marking, correct protectors, stable bundles and matching documents reduce receiving inspection delays.
Size, Drift and Internal Clearance Control
For S135 drill pipe, dimensional inspection is important because the finished joint must match both the drilling program and the rig-side receiving requirements. The nominal pipe size only describes the pipe body. The final usable clearance also depends on the upset area, tool-joint bore, connection design and full-length drift result.
Before export packing, the dimensional review should confirm the key finished-joint dimensions rather than only checking the outside appearance. OD, wall thickness, length, straightness, tool-joint dimensions and internal clearance all affect how the drill pipe will be tallied, stored, handled and assembled into the drilling string.
| Check Item | What to Confirm | Why It Matters |
| Pipe Body OD | Matches the approved order specification | Supports string design and yard identification |
| Wall Thickness | Meets the required nominal weight and tolerance | Affects pipe-body strength and internal diameter |
| Finished Length | Matches R2 or project-specified range | Supports pipe tally and rig handling |
| Straightness | No abnormal bending or handling deformation | Reduces storage, handling and make-up problems |
| Tool-Joint OD/ID | Matches the approved connection design | Affects connection compatibility and internal passage |
| Drift Test | Drift mandrel passes through the complete finished joint | Confirms there is no internal restriction before shipment |
The drift test should be treated as a final internal-clearance confirmation. It verifies that the approved drift mandrel can pass through the pipe body, upset areas and tool-joint bores without obstruction. This helps identify bore mismatch, local deformation, weld-area restriction or internal damage before the drill pipe is packed and shipped.
Connection Integrity and Thread Protection
The connection is a major acceptance point for S135 drill pipe. A correct pipe-body grade cannot solve problems caused by wrong connection identity, damaged threads or poor shoulder condition.
| Review Point | What to Confirm | Risk Controlled |
| Connection Identity | Connection type agrees with the order and marking | Wrong string compatibility |
| Thread Condition | No visible dents, tears, corrosion or abnormal damage | Make-up difficulty and field rejection |
| Shoulder Face | Clean, flat and protected from impact | Poor torque transfer and shoulder damage |
| Tool-Joint Bore | Bore transition is clean and unobstructed | Drift failure or tool passage restriction |
| Thread Protectors | Pin and box protectors installed tightly | Transport damage to threads and shoulders |
| Protector Timing | Installed after final thread inspection | Prevents damage after accepted inspection |
| Marking Visibility | Grade, size, connection and lot information remain readable | Receiving inspection confusion |
Practical Note：
Thread protectors are not decoration. They are part of the shipment release condition. For S135 drill pipe, thread and shoulder damage can stop a joint from entering service even when the pipe body meets the mechanical requirements.

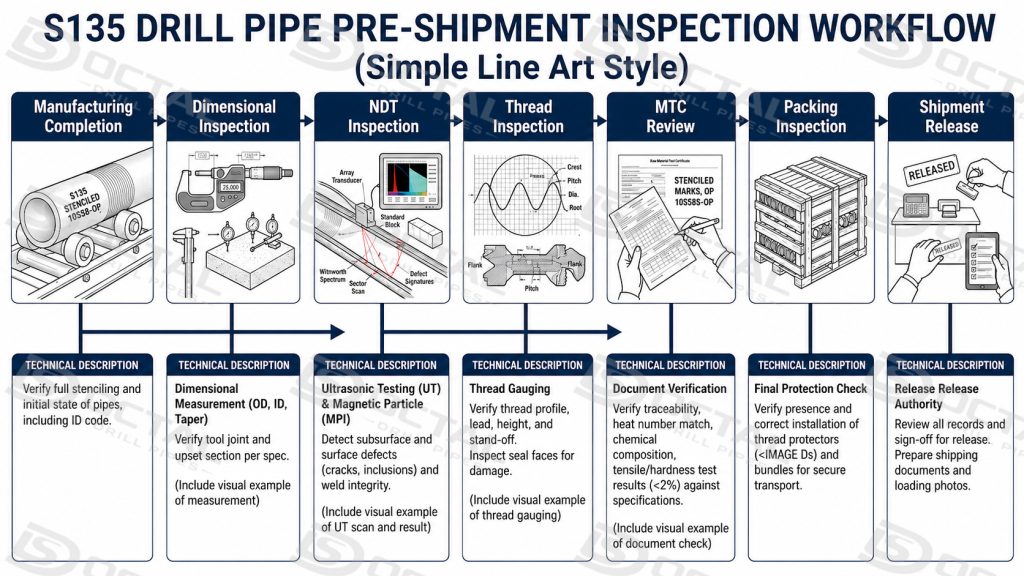

Pre-Shipment Inspection and Release Review
Before dispatch to Dammam, Saudi Arabia, the S135 drill pipe shipment was reviewed from both the physical product side and the document side. The purpose of this review was to confirm that the finished joints, export packing and shipment records remained consistent before release.
| Review Area | What Was Checked Before Shipment | Release Basis |
| Product Identity | Grade marking, size, connection type and heat/lot identity on the finished drill pipe | Product marking matched the order and related documents |
| Finished Joint Condition | Pipe body surface, OD, wall thickness, straightness, upset transition, weld zones, tool joints and shoulder faces | Finished joints were checked as complete S135 drill pipe assemblies |
| Internal Clearance | Full-length drift passage through the finished joint | Drift condition was confirmed before packing |
| Connection Protection | Thread condition, shoulder cleanliness and correct fitting of pin and box protectors | Connections were protected for export handling and transport |
| Inspection Records | MTC, heat-treatment record, dimensional report, NDT report and thread inspection record | Records supported grade, dimensions, inspection status and connection identity |
| Packing Condition | Bundle stability, visible tags, protected tool-joint ends and packing-list consistency | Export packing matched the released shipment condition |
| Traceability | Joint marking, inspection records, bundle tags, packing list and loading photos | Shipment identity remained traceable from inspection to dispatch |
This pre-shipment review helped confirm that the S135 drill pipe was released as a controlled export shipment rather than as a simple steel cargo. The final objective was to ensure that the finished joints, packing condition and release documents stayed consistent before dispatch.
The document chain should remain clear:
Joint marking → heat number → MTC → heat-treatment record → mechanical test → NDT report → dimensional report → thread inspection → bundle tag → packing list → loading photos
This is the simplest way to prevent mixed lots, unclear grade identity, missing protector disputes and receiving inspection delays.
This pre-shipment review helped confirm that the S135 drill pipe was released as a controlled export shipment rather than as a simple steel cargo. The final objective was to ensure that the finished joints, packing condition and release documents stayed consistent before dispatch.
FAQ
Q1: What is S135 drill pipe?
A1: S135 drill pipe is a high-strength API 5DP drill pipe grade made from a heat-treated seamless alloy steel pipe body with upset ends and friction-welded pin and box tool joints.
Q2: What is S135 drill pipe used for?
A2: It is used in drilling strings that require higher tensile capacity, torque resistance and fatigue control, especially in deeper, directional, extended-reach or high-load drilling sections.
Q3: What should be checked before S135 drill pipe shipment?
A3: The release check should cover grade marking, dimensions, straightness, drift, weld-zone inspection, thread condition, thread protectors, MTC, NDT records and packing-list traceability.
Q4: Is the pipe-body strength enough to approve the shipment?
A4: No. S135 grade confirms the pipe-body strength level, but the finished drill pipe also needs connection inspection, tool-joint review, drift confirmation, protector check and document matching.
Q5: Why is packing important for S135 drill pipe delivery to Dammam?
A5: Export packing protects the threaded ends, shoulders and tool-joint areas during transport and handling. Clear bundle marking and matching documents also help the receiving team complete inspection quickly after arrival.
