Drill pipe pressure loss is closely related to the size of the internal flow passage inside the drill string. When the drill pipe ID, or internal diameter, becomes smaller, the same amount of drilling fluid has less space to pass through. Fluid velocity increases, and more pump pressure is required to overcome friction inside the pipe.
This relationship is an important part of drilling hydraulics, especially in deep wells, directional wells, and long horizontal sections where drilling fluid must travel through a long drill string. However, the pipe-body ID is not the only dimension that matters. Upset sections, tool joints, subs, and other downhole components can also reduce the internal flow area and add pressure loss.
Why Drill Pipe ID Matters for Drilling Hydraulics
The basic relationship is simple: drilling fluid must pass through the internal bore of the drill pipe.
The internal flow area can be calculated as:
Flow Area = 3.1416 × D² / 4
where:
- Flow Area = internal area available for fluid flow
- D = internal diameter
Average fluid velocity can then be calculated as:
Average Fluid Velocity = Flow Rate / Flow Area
This means that when the internal diameter becomes smaller, the flow area decreases. If the pump continues delivering the same flow rate, the fluid has to move faster through the smaller passage.
A higher fluid velocity normally creates more friction against the inside wall of the pipe, increasing pressure loss inside drill pipe.
The following example shows how internal diameter changes fluid velocity at the same circulation rate.
| Internal Diameter | Internal Flow Area | Fluid Velocity at 500 gal/min | Relative Velocity |
|---|---|---|---|
| 2.75 in. | 5.94 in² | 27.01 ft/s | 1.86× |
| 3.00 in. | 7.07 in² | 22.69 ft/s | 1.56× |
| 3.25 in. | 8.30 in² | 19.34 ft/s | 1.33× |
| 3.50 in. | 9.62 in² | 16.67 ft/s | 1.15× |
| 3.75 in. | 11.04 in² | 14.52 ft/s | 1.00× |
The example uses the same 500 gal/min flow rate for every diameter. It only shows the effect of ID on flow area and velocity. Actual pressure loss also depends on pipe length, drilling-fluid properties, internal surface condition, and other restrictions in the drill string.
Where Pump Pressure Is Used During Circulation
The pressure measured at the standpipe does not represent drill pipe pressure loss alone.
The mud pumps must provide enough pressure to move drilling fluid through the complete circulation system. Pressure is gradually lost as the fluid passes through different sections of the well.
| Section | Why Pressure Is Lost |
|---|---|
| Surface lines | Friction through the standpipe, hose and surface piping |
| Drill pipe | Friction along the internal bore |
| Upset sections | Smaller internal passage and changing flow area |
| Tool joints | Local restriction compared with the pipe body |
| Downhole tools | Flow restrictions through the bottom-hole assembly |
| Bit nozzles | High-velocity flow through small nozzle openings |
| Annulus | Friction as drilling fluid returns to surface around the drill string |
For this reason, a high pump pressure does not automatically mean the drill pipe ID is too small.
The complete system has to be reviewed before deciding where the main restriction is located.
Why a Smaller ID Creates More Pressure Loss
The easiest way to understand drill pipe friction pressure loss is to think about fluid moving through a narrow passage.
When the passage becomes smaller:
- the available flow area decreases;
- the drilling fluid moves faster;
- friction against the internal surface increases;
- more pressure is needed to maintain the same flow rate.
The same effect becomes stronger when the drill string is long because friction continues along the entire internal surface.
Several operating conditions can therefore change drill pipe pressure loss.
| Parameter | Change | Typical Hydraulic Effect |
|---|---|---|
| Drill pipe ID | Decreases | Flow velocity increases; internal pressure loss generally increases |
| Flow rate | Increases | Fluid velocity and friction pressure loss increase |
| Drill-string length | Increases | Friction accumulates over a longer flow path |
| Drilling-fluid viscosity | Increases | More pressure is required to maintain the same circulation rate |
| Internal surface roughness | Increases | Friction against the pipe wall can increase |
| Tool joint ID | Decreases | Creates a repeated local restriction at each connection |
| Number of drill pipe joints | Increases | More tool-joint restrictions are added along the string |
How Tool Joint ID Affects Flow

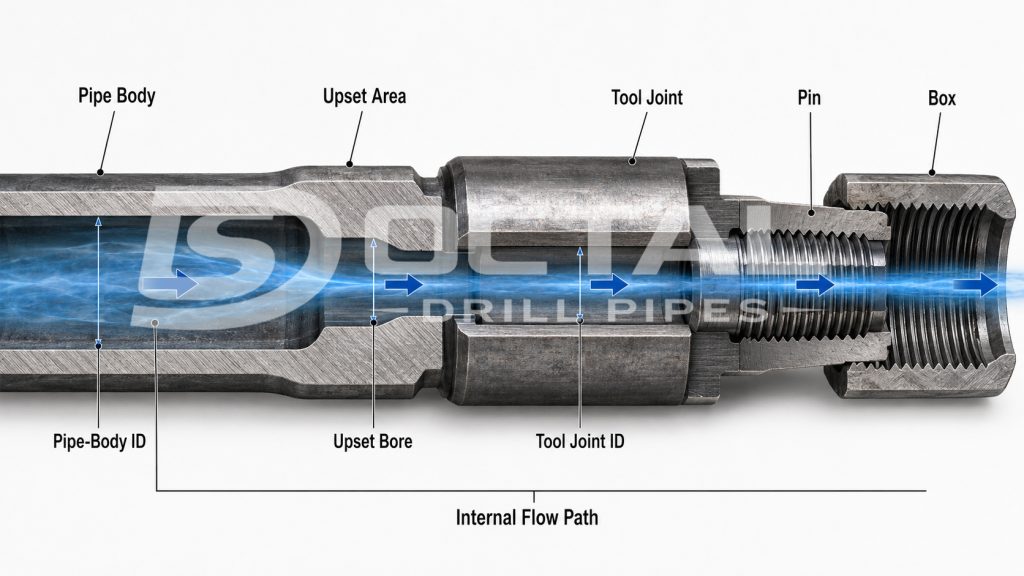

A finished drill pipe joint does not have the same internal diameter from end to end. Drilling fluid moves through the pipe body, upset section, and tool joint, and the bore size can change between these areas.
The tool joint ID is particularly important because the tool joint is the thicker connection section at each end of the drill pipe. Its bore may be smaller than the pipe-body ID, creating a local restriction in the internal flow path.
When drilling fluid enters this smaller bore, its velocity increases. The flow then expands again as it enters the larger bore of the next section. Although the pressure loss across a single connection may be relatively small, the same restriction is repeated at every tool joint along the drill string. In a long string, these repeated losses can become significant.
Tool joint ID deserves closer attention when:
- the well has a long measured depth;
- high circulation rates are required;
- the drilling fluid has relatively high viscosity;
- available pump pressure is limited;
- the drill string contains a large number of connections;
- maintaining hydraulic performance at the bit is important.
For this reason, hydraulic calculations should not rely on pipe-body ID alone. The pipe-body ID, upset bore, and tool joint ID should be reviewed together when estimating the internal flow path and drill pipe pressure loss.
A larger tool joint bore can reduce hydraulic restriction, but simply increasing the ID is not always the best solution. The tool joint must still retain enough material to meet the required connection strength, torque capacity, wear allowance, and service conditions. Hydraulic performance and mechanical strength therefore need to be considered together during drill pipe selection. For a closer look at pin-box structure, connection designations, tool joint dimensions, and inspection points, refer to the API Drill Pipe Connections Reference.
Hydraulic Performance and Mechanical Strength Must Be Balanced
Increasing the internal bore can reduce flow resistance, but tool joint dimensions cannot be selected for hydraulic performance alone. The connection still needs enough material to carry torque and tensile loads, withstand repeated make-up and break-out, and provide adequate wear and fatigue resistance. API 5DP drill pipe grades should therefore be reviewed together with connection and tool joint requirements rather than by pipe-body strength alone.
This creates a practical trade-off. A larger tool joint ID improves the internal flow path, while a smaller bore leaves more material around the connection. The final geometry therefore has to satisfy both hydraulic and mechanical requirements.
For drill pipe selection, the objective is not to maximize ID, but to provide enough internal flow area without reducing the required connection capacity.
Why the Effect Becomes More Important in Deep and Directional Wells
As measured depth increases, drilling fluid has to travel through a longer internal flow path before reaching the BHA and bit. That longer path adds friction along the pipe wall and also increases the number of tool joints, upset sections, and other bore changes the fluid must pass through.
For this reason, drill pipe pressure loss becomes more significant in deep, directional, and extended-reach wells. A restriction that has little influence in a short string can have a much larger cumulative effect when it is repeated across dozens or hundreds of drill pipe joints.
The hydraulic impact is usually greater when the well combines:
- long measured depth or extended horizontal sections;
- high circulation rates;
- relatively viscous drilling fluid;
- restricted tool joint IDs or upset bores;
- a large number of drill pipe connections;
- limited standpipe pressure margin;
- high pressure demand through the BHA and bit.
Under these conditions, unnecessary restrictions inside the drill string can consume pressure that would otherwise be available farther down the circulation system. Pipe-body ID, upset bore, and tool joint ID therefore need to be considered together rather than treating the nominal drill pipe size as the only hydraulic input.
A larger drill pipe ID can reduce internal flow resistance, but hydraulic performance cannot be optimized independently of mechanical design. Tool joint strength, connection geometry, wear allowance, and operating loads still have to be satisfied.
Why Two Drill Pipes with the Same OD Can Perform Differently

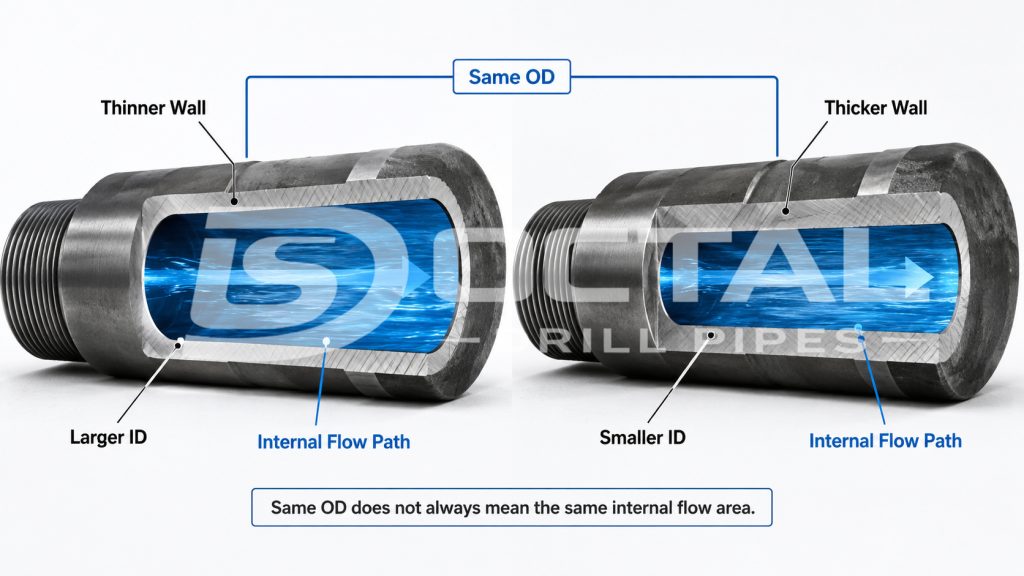

Two drill pipes with the same outside diameter do not necessarily provide the same internal flow path. The reason is simple: OD describes the outside size of the pipe, while hydraulic performance depends mainly on the space available inside the drill string.
Wall thickness is the first difference to check. For example, 5-inch drill pipe can be supplied with different wall thicknesses depending on the required pipe weight and mechanical capacity. A thicker wall leaves a smaller pipe-body ID even though the outside diameter remains 5 inches.
The effect can be seen from the geometry alone:
| 5 in. Drill Pipe Example | Thinner-Wall Configuration | Heavier-Wall Configuration |
|---|---|---|
| Pipe OD | 127.0 mm / 5.000 in. | 127.0 mm / 5.000 in. |
| Wall Thickness | 9.19 mm | 12.70 mm |
| Approx. Pipe-Body ID | 108.62 mm / 4.276 in. | 101.60 mm / 4.000 in. |
| Approx. Internal Flow Area | 14.36 in² | 12.57 in² |
| Relative Fluid Velocity at the Same Flow Rate | 1.00× | 1.14× |
The values above illustrate the geometric effect of the wall-thickness range listed for 5-inch drill pipe. Actual project configurations should always be checked against the ordered size, nominal weight, and approved product specification.
This means that, at the same circulation rate, the heavier-wall example provides about 12.5% less internal flow area, so the drilling fluid must move about 14% faster through the pipe body. Higher velocity does not by itself define the final pressure loss, but it generally increases frictional resistance and therefore increases the pressure required to circulate the fluid through a long drill string.
The difference does not stop at the pipe body.
A complete drill pipe joint also contains upset sections and tool joints. Their internal bores can be smaller than the main pipe-body ID, creating additional restrictions every time the fluid passes through a connection. The hydraulic path is therefore better represented as:
The hydraulic comparison therefore has to follow the complete internal flow path—from the pipe-body ID through the upset bore and tool joint ID—rather than stopping at nominal OD.
This is especially important in long or extended-reach wells. A small restriction at one connection may have a limited effect, but the same geometry is repeated through dozens or hundreds of drill pipe joints.
Published 5-inch, 25.6 lb/ft S135 drill pipe configurations also show that the tool joint ID can vary substantially even when pipe OD, nominal weight, and grade remain the same. Depending on the connection design, published tool-joint IDs range from 2.75 in. to 3.625 in.
| Tool Joint ID Example | Internal Flow Area | Relative Velocity at the Same Flow Rate |
|---|---|---|
| 2.750 in. | 5.94 in² | 1.74× |
| 3.250 in. | 8.30 in² | 1.24× |
| 3.500 in. | 9.62 in² | 1.07× |
| 3.625 in. | 10.32 in² | 1.00× |
This comparison does not mean that the connection with the largest bore is automatically the best choice. Tool-joint dimensions also affect connection strength, torque capacity, wear allowance, and compatibility with the rest of the drill string.
Instead, it shows why two drill pipes labeled simply as “5-inch drill pipe” can behave differently during circulation.
For hydraulic comparison, engineers should check at least:
- pipe-body wall thickness and ID;
- upset bore;
- tool joint ID;
- connection design;
- total drill-string length;
- planned circulation rate.

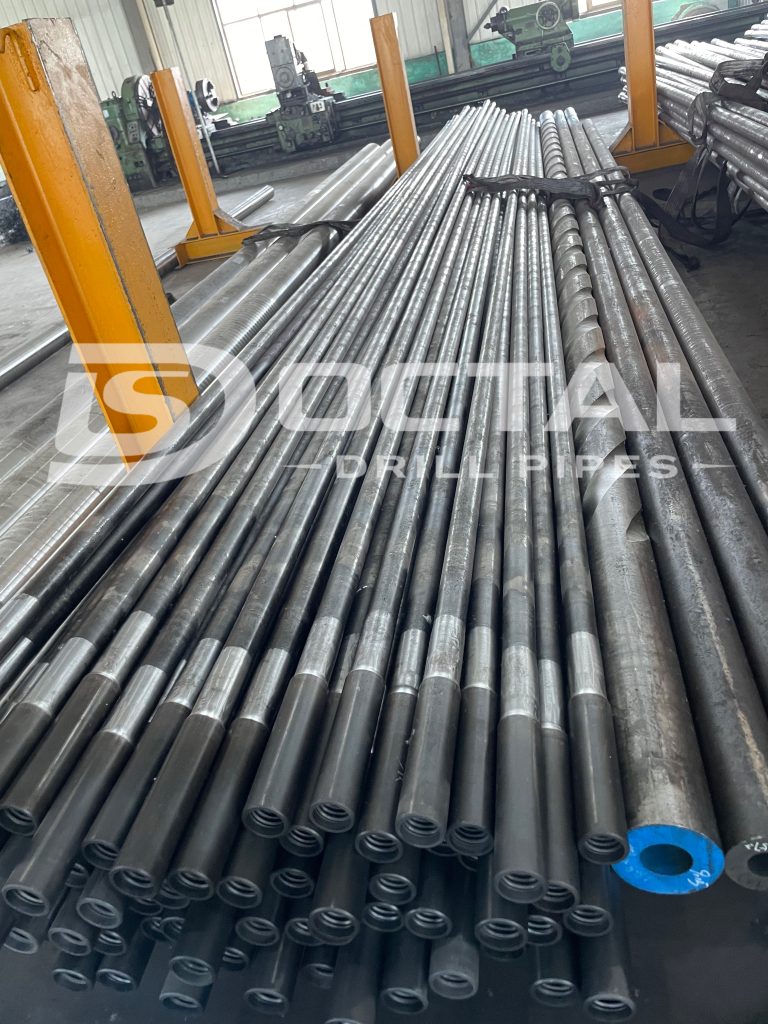

Nominal OD is therefore only the starting point. For API 5DP drill pipe, the pipe-body dimensions and tool-joint configuration should be reviewed together before estimating drill pipe pressure loss or comparing hydraulic performance.
How to Review Drill Pipe for Hydraulic Performance
When comparing drill pipe for a project, the hydraulic review should start with the actual dimensions of the complete drill pipe assembly.
A useful hydraulic review should combine the actual drill pipe dimensions with the planned operating conditions.
These dimensions should then be reviewed together with operating conditions.
| Review Item | What to Confirm |
|---|---|
| Planned flow rate | Expected drilling-fluid circulation rate |
| Pipe-body ID | Main internal flow area |
| Tool joint ID | Repeated restriction through connections |
| Upset bore | Local restriction between pipe body and tool joint |
| Drill-string length | Distance over which internal friction occurs |
| Drilling fluid | Density and flow characteristics |
| Downhole tools | Additional internal restrictions |
| Bit configuration | Pressure required across the bit |
| Hole geometry | Influences return-flow pressure loss |
When comparing drill pipe specifications, the hydraulic review should consider pipe size, grade, wall thickness, upset configuration, tool joint dimensions, and connection requirements together.
Looking at only one dimension can give an incomplete picture.
Do Not Confuse Drill Pipe Pressure Loss with Standpipe Pressure
One common mistake is treating standpipe pressure and drill pipe pressure loss as the same thing.
They are related, but they are not identical.
Standpipe pressure represents the pressure required to circulate drilling fluid through the complete system.
The drill pipe is only one part of that system.
If standpipe pressure becomes higher than expected, possible causes can include:
| Observation | Possible Cause |
|---|---|
| Pressure gradually increases with higher flow rate | Higher friction throughout the circulation system |
| Pressure increases after mud properties change | Drilling fluid has become more resistant to flow |
| Pressure is higher than hydraulic model predicts | Unexpected restriction in drill string or downhole tools |
| Pressure changes after replacing the bit | Different nozzle arrangement |
| Return-flow pressure becomes high | Annular restriction, cuttings loading or fluid properties |
| Sudden abnormal pressure change | Equipment, bit, drill-string or circulation problem |
The correct response is to review the complete circulation path before changing the drill pipe specification.
Common Mistakes in Drill Pipe Hydraulic Selection
One common mistake is to compare drill pipe only by outside diameter. Two pipes with the same OD can have different wall thicknesses, pipe-body IDs, upset bores, and tool joint IDs, so their internal flow areas may be quite different. For hydraulic comparison, the actual bore through the complete drill pipe assembly matters more than the nominal outside size.
Another issue is using the pipe-body ID as if it represented the entire drill string. In practice, the upset or tool joint may have a smaller bore. If that restriction appears at every connection, its effect can build up over a long string and become more important than the pipe-body ID alone would suggest.
The opposite mistake is to focus only on increasing ID. A larger bore can reduce internal flow resistance, but the tool joint still has to carry torque, tensile load, and repeated make-up and break-out. The best connection is therefore not simply the one with the largest ID, but the one that provides enough flow area without sacrificing the required mechanical capacity.
Finally, a high standpipe pressure should not automatically be blamed on the drill pipe. Pressure is also lost through surface equipment, the BHA, bit nozzles, and the annulus. Drill pipe pressure loss should be checked as one part of the full circulation system rather than treated as a separate problem in isolation.
FAQ
Q: Does a smaller drill pipe ID increase pressure loss?
A: In general, yes. At the same flow rate, a smaller internal diameter reduces flow area and increases fluid velocity. This normally increases friction and therefore increases drill pipe pressure loss
Q: Is drill pipe ID the same as tool joint ID?
A: No. Drill pipe ID normally refers to the internal diameter of the pipe body. The tool joint has its own internal bore, which may be smaller and create an additional flow restriction.
Q: Can tool joints affect drilling hydraulics?
A: Yes. Each tool joint can create a local restriction because its internal bore and geometry may differ from the pipe body. In a long drill string, the effect of many repeated connections can become significant.
Q: What drill pipe dimensions should be checked for hydraulic performance?
A: Check the pipe-body ID, wall thickness, upset bore, tool joint ID, tool joint OD, connection type, and total drill-string length. These dimensions should then be reviewed together with flow rate and drilling-fluid properties.
