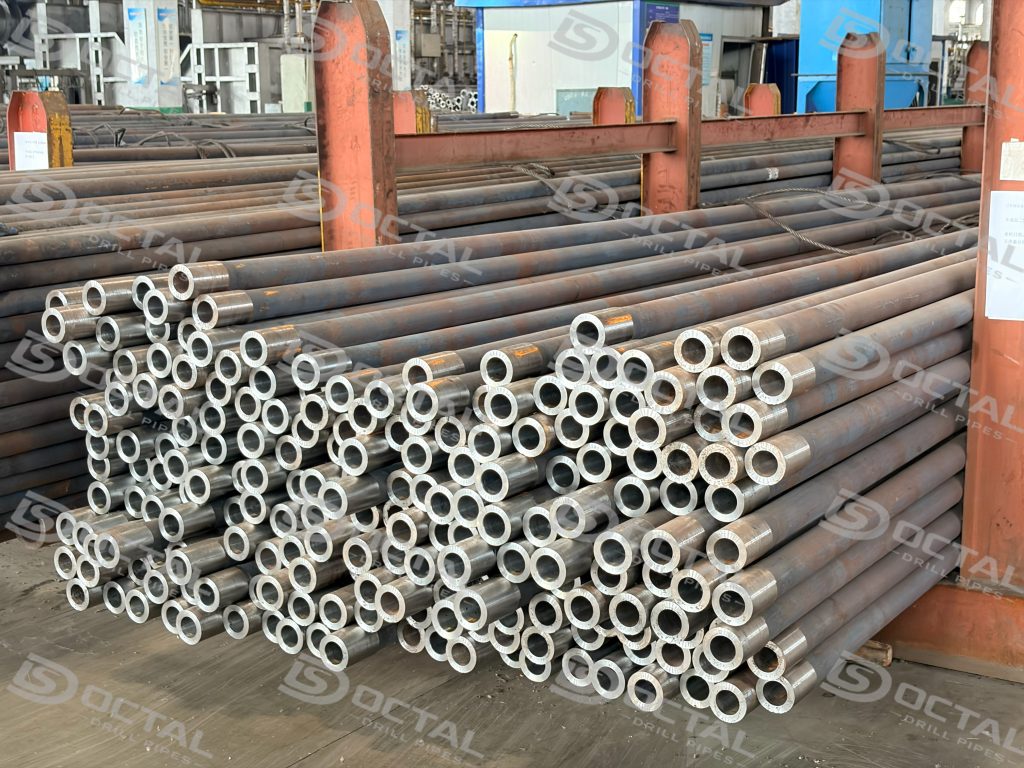

API 5DP 2-7/8 inch E75 drill pipe is a drill-string component with a 2.875 in. pipe-body outside diameter, manufactured from heat-treated alloy steel for rotary drilling service. It is normally produced from a seamless steel tube with upset ends, then fitted with friction-welded tool joints and machined threaded connections to meet API 5DP dimensional and mechanical requirements. The material chemistry is controlled to support the required E75 performance level, typically based on carbon-manganese alloy steel with controlled alloying elements such as manganese, chromium, and molybdenum, while the exact composition depends on the approved mill design and production route. In practical use, 2-7/8 inch E75 drill pipe is commonly selected for smaller-hole drilling sections and moderate-load drilling programs where reliable fluid passage, tensile capacity, and connection compatibility are required.
For this shipment to Malaysia, Octal Drill Pipes prepared API 5DP 2-7/8 inch E75 drill pipe with a 2.875 in. pipe-body OD, E75 grade, NC31 connection, and Range 2 length for delivery to Port Klang, Selangor, Malaysia. Before packing, each joint was checked against the approved order requirements, including pipe-body OD, wall thickness, upset transition, tool-joint condition, NC31 pin and box connection, internal clearance, length range, marking, thread protection, packing records, and MTC traceability.
Order Overview
| Item | Order Details |
|---|---|
| Destination | Port Klang, Selangor, Malaysia |
| Product | API 5DP 2-7/8 Inch E75 Drill Pipe |
| Pipe-Body OD | 2.875 in. / 73.0 mm |
| Nominal Weight | 10.40 lb/ft / approximately 15.5 kg/m |
| Nominal Wall Thickness | 0.362 in. / 9.19 mm |
| Nominal Pipe-Body ID | 2.151 in. / approximately 54.6 mm |
| Grade | E75 |
| Upset Type | EU |
| Connection | NC31 |
| Length Range | R2 |
| Release Focus | Size, wall thickness, drift, NC31 connection, marking, packing and MTC traceability |

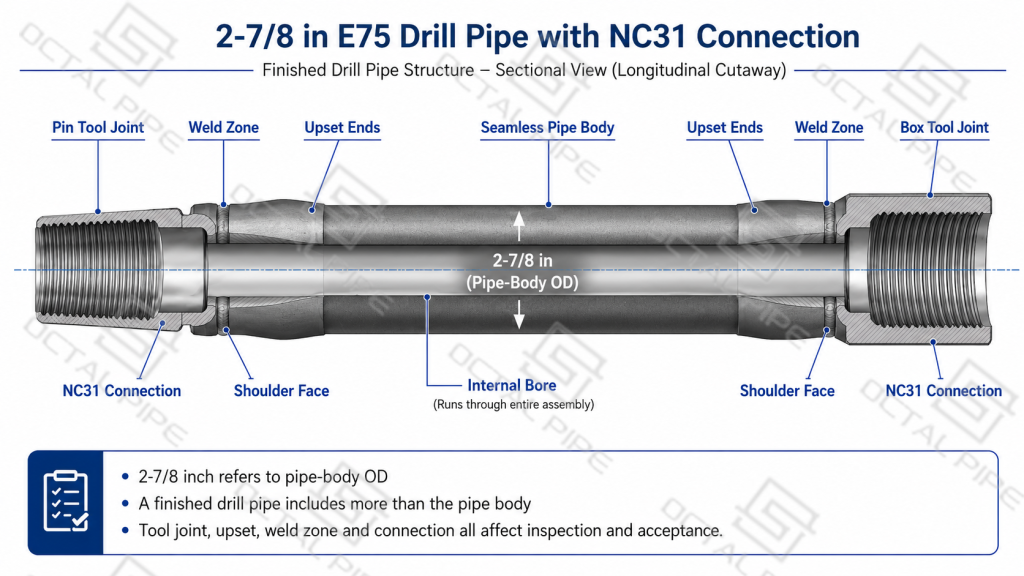

2-7/8 Inch E75 Drill Pipe Specification Logic
The designation 2-7/8 inch drill pipe identifies the nominal outside diameter of the pipe body. It does not describe the complete finished joint by itself. The final drill pipe assembly also depends on nominal weight, wall thickness, upset type, tool-joint OD and ID, rotary-shouldered connection, internal bore, length range, and inspection scope.
For this Malaysia shipment, the 2.875 in. pipe body was matched with E75 grade and NC31 connections. This combination is suitable for drilling programs where the load requirement does not justify moving into higher-strength grades such as X95, G105, or S135, but where API 5DP manufacturing control, traceability, and connection compatibility are still required.
| Assembly Element | Malaysia Order Configuration | Release Significance |
|---|---|---|
| Pipe body | 2.875 in. OD, 10.40 lb/ft | Confirm OD, wall thickness, straightness and body condition |
| Grade | E75 | Verify mechanical-property records by heat and heat-treatment lot |
| Upset type | EU | Check external upset geometry and weld transition alignment |
| Tool joints | Friction-welded pin and box | Confirm tool-joint condition, bore, shoulder and connection identity |
| Connection | NC31 | Verify thread condition, gauge acceptance and matching pin/box configuration |
| Length range | R2 | Confirm finished length, tally identity and bundle marking |
The nominal pipe-body ID of approximately 2.151 in. is calculated from the nominal OD and wall thickness. It should not be treated as the guaranteed minimum passage through the complete finished joint. The controlling internal restriction may occur at the upset transition, weld area, tool-joint bore, or a local area affected by machining or handling. For this reason, drift verification remained part of the shipment release.
Dimensional and Internal-Clearance Review
The 2-7/8 inch E75 drill pipe lot was reviewed as a finished assembly rather than as loose pipe body dimensions. OD, wall thickness, length, straightness, and connection geometry must agree with the approved data sheet before export packing.
The dimensional check focused on:
- measured pipe-body OD at defined inspection points;
- wall thickness confirmation against the ordered nominal configuration;
- visual review for dents, deformation, sharp handling marks, or abnormal surface damage;
- upset transition and weld-area alignment;
- finished length and Range 2 bundle identity;
- tool-joint bore and full-length internal clearance.
For smaller drill pipe sizes, internal clearance is especially important because the available bore is more limited than in larger drill-string members. A restriction at the upset or tool-joint bore can affect drift passage, circulation clearance, and downhole-tool compatibility. The final acceptance therefore included drift review through the complete joint rather than relying only on the calculated pipe-body ID.
E75 Grade Control for the Malaysia Shipment
E75 is the lowest standard API 5DP drill-pipe grade among E75, X95, G105, and S135, but it still requires controlled manufacturing and traceable mechanical-property release. It is commonly selected where the drilling program requires reliable drill-string assembly quality without the higher yield-strength range of Group 3 grades.
For this shipment, the E75 release file was checked to confirm that the finished joints remained tied to the correct material and production records.
| Control Area | What Was Checked | Release Record |
|---|---|---|
| Pipe-body grade | E75 grade identity and heat number | MTC and production record |
| Mechanical properties | Yield and tensile test consistency | Mechanical test report |
| Heat treatment | Heat-treatment lot traceability | Heat-treatment record |
| Weld zone | Friction-weld transition and condition | Weld inspection / NDT record |
| Connection | NC31 pin and box identity | Thread inspection record |
| Final bundle | Quantity, marking and protectors | Packing list and shipment photos |
A grade marking alone is not enough for shipment release. The grade, heat number, connection, upset type, length range, and packing identity must remain consistent from individual pipe marking through the MTC, inspection records, bundle tag, and packing list.
NC31 Connection Inspection Before Packing
The NC31 connection was checked as a functional make-up interface. Both pin and box ends must match the ordered configuration, and the connection identity must agree with the pipe marking, inspection status, bundle tag, and packing list.
Before final packing, the thread and shoulder areas were cleaned and visually reviewed. The inspection focused on conditions that could affect rig-floor make-up or receiving inspection.
| Inspection Area | Condition to Check | Practical Risk Controlled |
|---|---|---|
| Thread crests and roots | Burrs, rolled edges, dents or incomplete machining | Difficult engagement or gauge rejection |
| Thread flanks | Abnormal tool marks, tearing or local damage | Uneven load transfer after make-up |
| Rotary shoulder | Raised metal, dents, pitting or embedded particles | Poor shoulder contact |
| Pin nose and box entry | Deformation, chips or handling damage | Cross-threading during first engagement |
| Bore transition | Chips, steps or visible obstruction | Drift restriction or disturbed internal flow |
| Protector fit | Correct pin and box protectors | Thread damage during storage and transport |
After thread acceptance, protectors were installed on the pin and box ends. Protector fit was checked again during packing to confirm that the NC31 connection surfaces remained protected for inland handling, port movement, and sea transport.

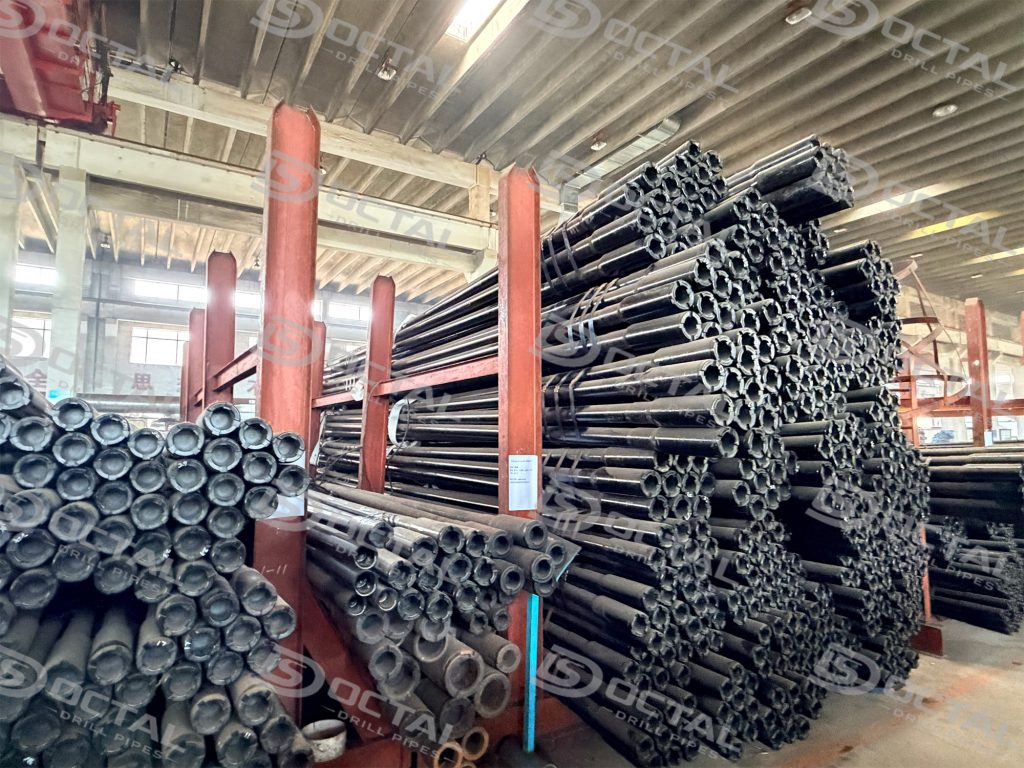

Packing, Marking and Export Documentation
The Malaysia shipment was prepared for export with bundle-level identification and document consistency as the main release points. For drill pipe, packing is not only a transport step. It is also the final point where product marking, quantity, connection identity, and documentation are reconciled before the material leaves the warehouse.
The packing review confirmed:
- pipe quantity and bundle count;
- 2-7/8 inch E75 drill pipe marking;
- NC31 connection identity;
- R2 length range;
- thread protector condition;
- bundle tag and packing list consistency;
- MTC and inspection document availability;
- shipment photographs for handover records.
The released document package supported receiving inspection at destination by connecting the physical drill pipe to the corresponding heat number, MTC, inspection records, and packing list. This helps reduce mismatch risk when the material arrives at Port Klang and moves onward to the project storage or drilling preparation site.
Supporting Smaller-Diameter Drill Pipe Orders
This 2-7/8 inch E75 drill pipe shipment to Malaysia demonstrates Octal Drill Pipes’ ability to control smaller-diameter API 5DP drill pipe orders where bore clearance, connection identity, and traceability records are important to final acceptance. Although 2-7/8 inch drill pipe is smaller than common 4-1/2 inch or 5 inch drill-string members, the release process still requires the same discipline across pipe-body dimensions, upset geometry, tool-joint inspection, thread protection, marking, and documentation.
For export projects, Octal Drill Pipes supports drill pipe supply by coordinating specification confirmation, inspection scheduling, document preparation, packing control, and shipment handover. Each released lot is checked so the delivered product, bundle records, and technical file remain aligned before dispatch.
Final Release Point
The API 5DP 2-7/8 inch E75 drill pipe lot was released for shipment only after the product configuration, inspection status, marking, packing and document records were reviewed together.
Final release confirmed that:
- the pipe body matched the ordered 2.875 in. OD configuration;
- the E75 grade was supported by traceable material records;
- NC31 pin and box connections matched the order;
- drift and internal-clearance checks were included in the release review;
- thread protectors were installed before packing;
- bundle tags and packing lists matched the released quantity;
- MTC and inspection records were available for shipment handover.
With these checks completed, the shipment was prepared for delivery to Malaysia through Port Klang. The order adds a smaller-size drill pipe project record to the Octal Drill Pipes project portfolio and provides a practical reference for future 2-7/8 inch E75 drill pipe export requirements.
F1:What does 2-7/8 inch mean in 2-7/8 inch E75 drill pipe?
Q1:It refers to the nominal pipe-body outside diameter of 2.875 in., equal to 73.0 mm. The finished tool-joint dimensions must be confirmed separately from the approved configuration.
F2:What connection is commonly used for 2-7/8 inch E75 drill pipe?
Q2:NC31 is a common connection option for 2-7/8 inch drill pipe. The final connection must still match the drilling program, mating components, and approved data sheet.
F3:Is E75 drill pipe suitable for every drilling program?
Q3:No. E75 is suitable where the calculated tensile load, torque, dogleg exposure, and overpull remain within the selected pipe-body and connection capacity. Higher-load or high-fatigue programs may require X95, G105, or S135.
F4:What should be checked before shipping 2-7/8 inch E75 drill pipe?
Q4:Check pipe-body OD, wall thickness, nominal weight, upset type, NC31 connection, drift clearance, length range, marking, thread protectors, packing list, MTC, and inspection records.
