5 inch heavy weight drill pipe is a thick-wall rotary drill-stem element used as a transition section between conventional drill pipe and drill collars. It is manufactured from heat-treated alloy steel tube, with a heavy wall body, center upset section, friction-welded or inertia-welded tool joints, and machined rotary-shouldered connections. In drilling operations, 5 inch HWDP helps add distributed weight, improve bending stiffness, reduce abrupt stiffness change in the BHA, and support directional drilling, workover, milling, hole-opening, and other bottom-hole assembly applications.
For this shipment to Onne Port Complex, Rivers State, Nigeria, Octal Drill Pipes supplied 5 inch heavy weight drill pipe with a 5.000 in tube body OD, 3.000 in tube body ID, 1.000 in nominal wall thickness, 5.500 in center upset OD, NC50 connection, and tool joints designed for rotary drilling service. Before dispatch, the finished joints were reviewed for body dimensions, center upset geometry, internal clearance, NC50 pin and box condition, thread protection, marking consistency, packing records, and MTC traceability.
Order Overview
| Item | Order Details |
|---|---|
| Destination | Onne Port Complex, Rivers State, Nigeria |
| Product | 5 Inch Heavy Weight Drill Pipe |
| Product Type | API 7-1 Heavy Weight Drill Pipe / HWDP |
| Tube Body OD | 5.000 in |
| Tube Body ID | 3.000 in |
| Nominal Wall Thickness | 1.000 in |
| Center Upset OD | 5.500 in |
| Connection | NC50 |
| Tool Joint OD × ID | 6.625 in × 3.000 in |
| Approx. Adjusted Weight | 50.38–50.49 lb/ft |
| Approx. 31 ft Joint Weight | About 1,560 lb |
| Length Range | R2 / about 31 ft |
| Release Focus | 5 inch tube body, center upset, NC50 connection, drift, marking, protectors, packing list and MTC traceability |
5 Inch Heavy Weight Drill Pipe Specification Review
The designation 5 inch heavy weight drill pipe refers to the nominal tube body outside diameter of 5.000 in. It does not describe the complete finished joint by itself. A complete HWDP assembly also includes the tube body ID, wall thickness, center upset, tool joint OD and ID, connection type, drift requirement, joint length, hardbanding requirement if specified, and inspection record.
For this Nigeria shipment, the 5.000 in tube body was matched with a 3.000 in internal bore, 1.000 in nominal wall thickness, 5.500 in center upset OD, and NC50 connection. This configuration is commonly used where the drilling string needs more distributed weight and stiffness than standard drill pipe, but less rigidity than a full drill collar section.
| Assembly Element | Nigeria Shipment Configuration | Release Significance |
|---|---|---|
| Tube body | 5.000 in OD × 3.000 in ID | Confirms main HWDP body size and internal passage |
| Wall section | 1.000 in nominal wall thickness | Provides the thick-wall structure required for HWDP service |
| Center upset | 5.500 in OD | Adds mass and wear area at the middle section |
| Tool joints | 6.625 in OD × 3.000 in ID | Controls external clearance, connection strength and bore continuity |
| Connection | NC50 | Confirms compatibility with adjacent drill-string components |
| Length | R2 / about 31 ft | Supports project tally, handling and packing records |
| Weight | Approx. 50.38–50.49 lb/ft | Used for logistics review and joint weight calculation |
The 5 inch HWDP configuration should be reviewed as a complete rotary drill-stem element. Tube OD alone cannot confirm rig-floor compatibility, tool passage, connection suitability, or final shipment weight.
HWDP Position in the Drill String
A 5 inch heavy weight drill pipe is commonly placed above the drill collars or other rigid BHA components. Its role is not only to add weight. It helps moderate the stiffness change between the heavy, rigid drill-collar section and the more flexible conventional drill pipe above it.
In drilling service, this transition section may experience repeated bending, compression, rotation, wall contact, and axial load. The 5 inch HWDP body, center upset, NC50 connection, and tool-joint geometry must therefore be reviewed together.
| Drill-String Section | Relative Structure | Practical Function |
|---|---|---|
| Conventional drill pipe | Thinner wall and more flexible | Transmits torque, axial load and drilling fluid |
| 5 inch HWDP | Thick wall with intermediate stiffness | Adds distributed weight and reduces stiffness transition |
| Drill collar | Heavy and highly rigid | Provides concentrated weight and near-bit stiffness |
For projects in Nigeria, HWDP may be selected for vertical, directional, workover, milling, hole-opening, or BHA transition sections where controlled stiffness and reliable connection performance are required.
5 Inch HWDP Dimensional and Internal-Clearance Review

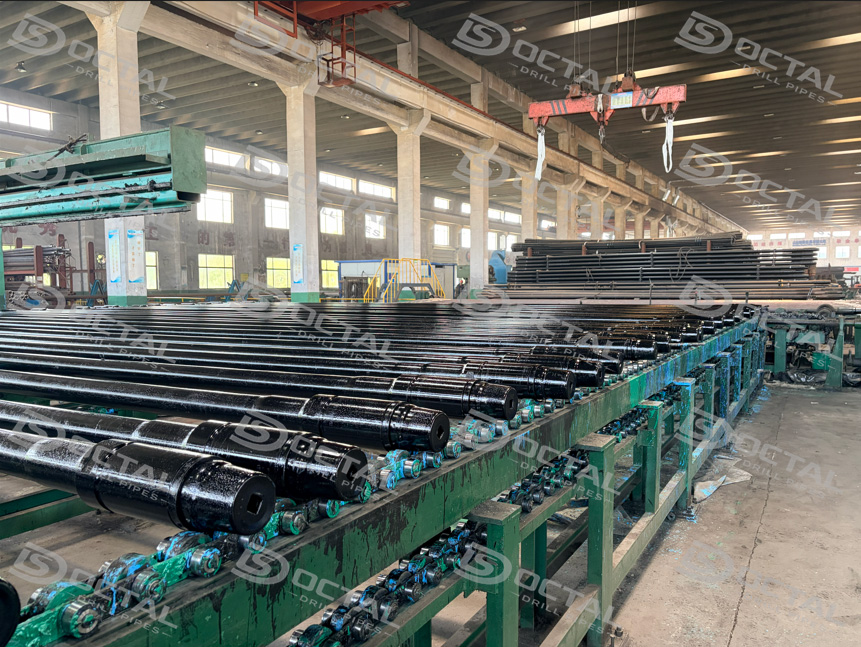

For this shipment, inspection focused on the finished HWDP assembly rather than loose tube dimensions. The tube body, center upset, tool joints, NC50 connection, and internal bore must remain consistent before packing.
The dimensional review covered:
- 5.000 in tube body outside diameter;
- 3.000 in tube body inside diameter;
- 1.000 in nominal wall thickness;
- 5.500 in center upset OD;
- tool joint OD and ID;
- finished length and R2 tally;
- straightness and visible surface condition;
- internal clearance through the full joint.
Internal clearance is especially important for 5 inch heavy weight drill pipe because the smallest restriction may occur at the tool joint bore, bore match point, center upset, or connection transition. A nominal 3.000 in tube ID does not automatically confirm that the complete assembly has the required through-bore. The finished joint should be checked against the required drift and project inspection plan before release.
NC50 Connection Inspection Before Packing
The NC50 connection is one of the main release points for this 5 inch HWDP shipment. The connection must match the order, pipe marking, inspection record, bundle tag, and packing list before the material is released for shipment.
Before packing, the NC50 pin and box ends were cleaned and checked for visible damage, machining condition, shoulder surface quality, bore transition, and protector fit.
| Inspection Area | Condition to Check | Practical Risk Controlled |
|---|---|---|
| NC50 pin thread | Burrs, dents, rolled edges or local damage | Difficult make-up or gauge rejection |
| NC50 box thread | Thread cleanliness and entry condition | Cross-threading or poor engagement |
| Rotary shoulder | Raised metal, dents, corrosion or embedded particles | Poor shoulder contact during make-up |
| Pin nose and box entry | Deformation or handling damage | Connection damage during first engagement |
| Tool-joint bore | Chips, steps or visible obstruction | Drift restriction or disturbed internal flow |
| Protector fit | Correct and secure pin/box protectors | Thread damage during storage and transport |
After inspection, thread protectors were installed to protect the NC50 connection during inland handling, port movement, and ocean freight. Protector condition was checked again during final packing.
Material Route and Manufacturing Control
Heavy weight drill pipe may be supplied as welded or integral construction. For a welded 5 inch HWDP assembly, the typical route includes a heat-treated seamless alloy-steel tube, upset geometry, tool-joint preparation, friction or inertia welding, post-weld heat treatment, final machining, connection threading, gauging, drift testing, marking, and release documentation.
For this shipment, release control focused on the areas that directly affect finished joint acceptance.
| Control Area | What Was Reviewed | Release Record |
|---|---|---|
| Tube body | OD, ID, wall thickness, straightness | Dimensional report |
| Center upset | OD, geometry, transition and surface condition | Visual / dimensional record |
| Tool joints | OD, ID, shoulder and bore condition | Tool-joint inspection record |
| Weld zone | Alignment, transition and accessible surface condition | Weld / NDT record when required |
| NC50 connection | Pin and box identity, thread and shoulder condition | Connection inspection record |
| Internal clearance | Drift or bore verification | Drift / clearance record |
| Shipment identity | Marking, bundle tag and packing list | Packing record and photos |
For export delivery, the physical marking and document chain must remain consistent. A mismatch between the pipe marking, MTC, inspection records or packing list can delay receiving inspection at destination.
Packing, Marking and Shipment to Onne Port

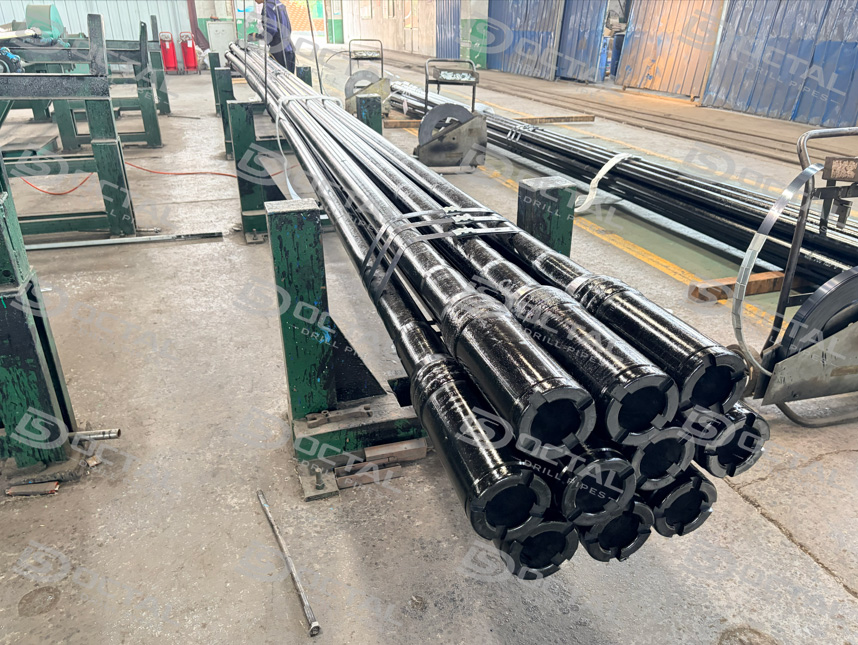

The 5 inch HWDP shipment was prepared for delivery to Onne Port Complex, Rivers State, Nigeria. Packing was controlled to protect the finished connections and to keep each joint traceable from warehouse release to port handling.
The packing review confirmed:
- quantity and bundle count;
- 5 inch HWDP marking;
- NC50 pin and box connection identity;
- R2 length range;
- thread protector condition;
- bundle tag consistency;
- packing list details;
- MTC and inspection document availability;
- shipment photo records.
For oilfield drilling materials, packing is also a traceability checkpoint. The released lot should connect the physical HWDP joints to the corresponding material records, connection inspection, dimensional report, packing list, and shipment records.
Supporting HWDP Shipments for Nigeria Drilling Projects
This 5 inch heavy weight drill pipe shipment to Onne Port, Nigeria demonstrates Octal Drill Pipes’ ability to support HWDP orders where tube body size, center upset, NC50 connection, internal clearance, and release documentation must be controlled together.
A 5 inch HWDP order is not evaluated by nominal tube OD alone. The finished joint must be reviewed as a drill-string component with body dimensions, center upset geometry, tool-joint size, connection condition, drift requirement, marking, packing and traceability all aligned before dispatch.
For Nigeria-bound shipments, Octal Drill Pipes can coordinate specification confirmation, inspection scheduling, packing preparation, document review, shipment photos, and export handover according to the approved purchase order and project requirements.
FAQ
F1:Why is NC50 connection important for 5 inch HWDP?
Q1:NC50 controls the pin and box make-up interface between the HWDP and adjacent drill-string components. Before shipment, the thread, shoulder face, bore transition and protector fit should be checked to reduce connection damage or rig-floor mismatch.
F2:Where is 5 inch heavy weight drill pipe used in the drill string?
Q2:5 inch HWDP is normally installed between conventional drill pipe and drill collars. It adds distributed weight and provides a smoother stiffness transition in BHA sections used for directional drilling, workover, milling or hole-opening operations.
F3:What records should be checked before shipping 5 inch HWDP to Nigeria?
Q3:The release file should include MTC, dimensional inspection, NC50 connection inspection, drift or internal-clearance record, packing list, bundle marking and shipment photos so the delivered HWDP can be matched with the approved order.
